Full Cone Nozzles - Spiral Design

The spray pattern is formed by impacting the fluid onto a protruding helix after exit form the spray orifice.  The liquid then shears off the helix, breaking into droplets and forming the spray pattern.  The spirals actually produce concentric rings of multiple hollow cone spray patterns with a less uniform liquid distribution between the cones to produce an approximate full cone pattern. By varying the geometry of the helix, however, a hollow cone pattern can be achieved.

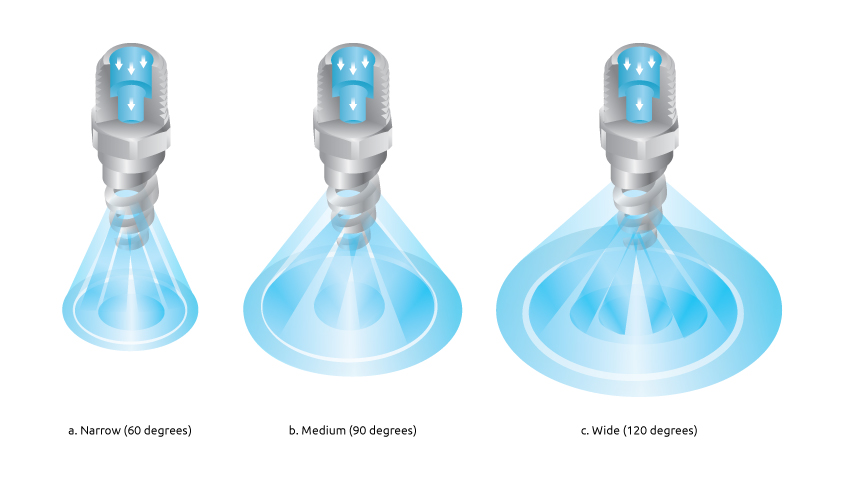

 Spiral Design Full Cone Nozzle Diagram



Spiral nozzles will, for any given flow rate and pressure, produce a full cone spray with the smallest droplet size for any direct pressure nozzles.

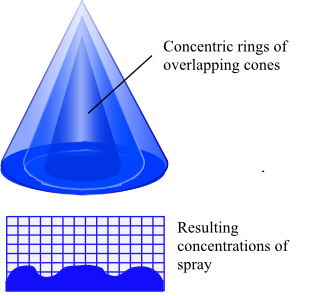

Spiral nozzle fluid distribution pattern

Spiral nozzles do not produce as even a coverage as other designs of full cone
nozzle because, as discussed, the full cone pattern is actually made up from
several overlapping hollow cones of spray.  Whilst this feature may mean they are unsuitable for some applications it is actually an advantage in others.  The concentrations of heavier droplets in rings has the effect of pulling the lighter droplets along with the spray.  So spiral nozzles can be used to deliver fine droplets to areas where they simply would not reach with a standard whirl type nozzle. This is particularly important in fire fighting applications as it allows the spray to deliver fine droplets through strong thermal air currents increasing the overall cooling power of the spray.

Another big advantage of this design over the axial whirl, is that it is clog resistant, allowing a wider range of fluids to be sprayed.  As the fluid is broken up into the spray pattern after exit from the orifice these nozzles have a very large free passage meaning gritty contaminants will easily move through the nozzle without causing blockages.

Full cone spiral nozzle range

There are a number of Bete nozzle product groups that use the spiral design.  Links to the product sheets can be found by clicking on the pictures below.

Low flow rate spiral nozzle Fire fighting spiral nozzle Abrasion resistent spiral nozzle Abrasion resistent, large free passage, spiral nozzle Ultra wide angle spiral nozzle  Large free passage spiral nozzle  Large free passage and wide angle spiral nozzle Spiral Full Cone Nozzles
