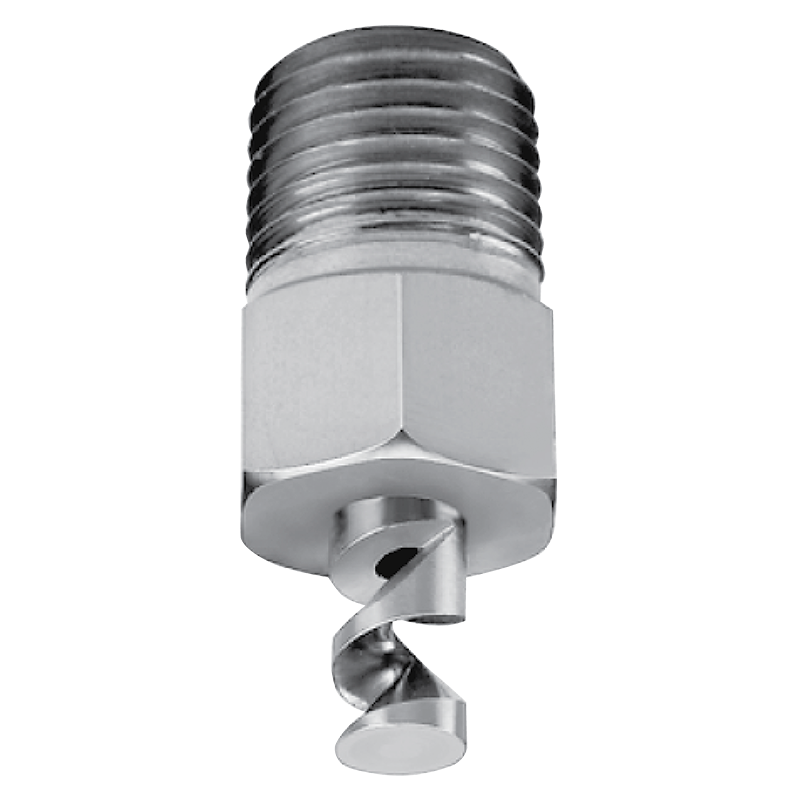

L Series Misting Spiral Nozzle

The L series is the low flow rate variant of the spiral nozzle. It produces an initial hollow cone spray pattern that quickly turns into a fog pattern at a small distance from the nozzle. It is used in a number of applications, including:

  • Dust Control
  • Evaporative Cooling
  • Humidification
  • Gas Conditioning
  • Gas Quench
  • And more.

pdf_ic

Design Feature

    • Effective wherever rectangular pattern is required
    • High energy efficiency
    • Low coefficient of discharge and large unimpeded openings
    • Excellent clog resistance
    • Mounted in opposing pairs
    • Male connection

Spray characteristics

    • Spray pattern: hollow cone fog, nearly as fine as P Series
    • Spray angles: 90° standard (120° available by special order)
    • Flow rates: 0.534 to14.7 l/min
