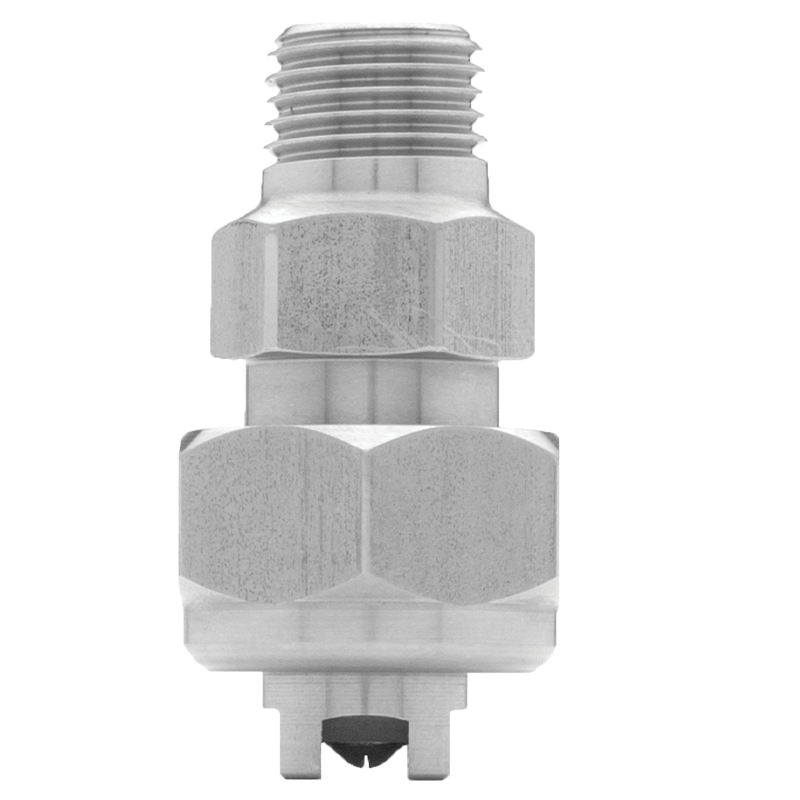

BJH Low Flow Flat Fan Nozzle

BJH Low Flow Flat Fan Nozzle

The BJH spray nozzle range is a low flow rate flat fan nozzle. It consists of three parts with a base, a spray tip and a cap nut (with an optional strainer). The base units and caps are universal meaning that spray tips can be swapped between base units.

BJ Nozzles have a wide variety of uses. Common applications include:

  • Coating Moistening
  • Lubrication
  • Spraying additives

Design Feature

    • Interchangeable spray tips
    • Integral strainer available
    • Male and female connections
    • Tips can be used with BETE
    • HydroPulse and BJ assemblies
    • Tungsten carbide orifice inserts for maximum wear resistance and service life
    • Male and Female Pipe Sizes: 1/8”, 1/4”, 3/8”, and 1/2”


Spray Characteristics

    • Relatively coarse atomisation
    • Uniform spray distribution with tapered edges for use in overlapping sprays
    • Spray pattern: Flat Fan
    • Spray angles: 0º to 120º
    • Flow rates: 0.048 to 16.6 L/min
