The use of nozzles for the applications of coatings is common in many industries.  Broadly speaking coating systems can be broken down into four main groups.

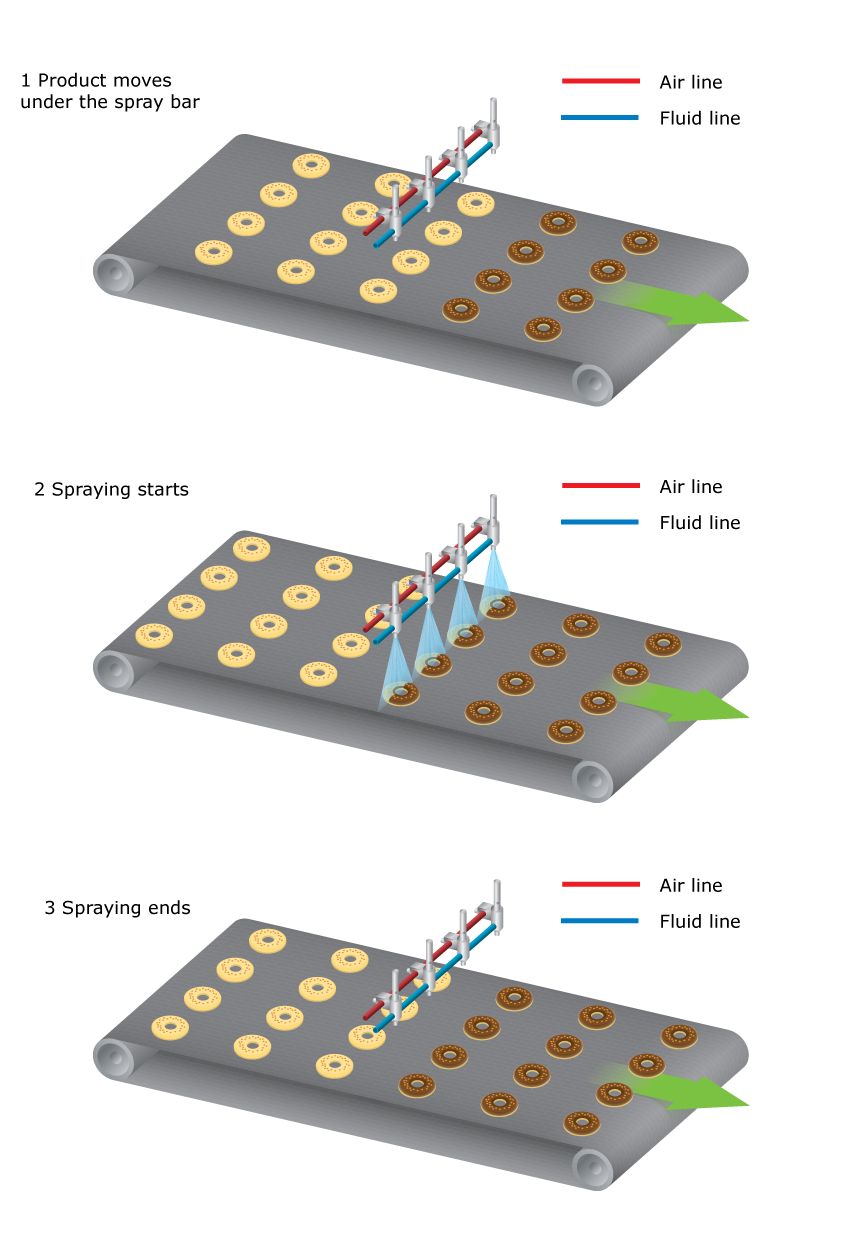

Spray bar on conveyor1 Continuous conveyor

Typical coating applications will involve a spray bar deployed over a product conveyor.  A line of spray is produced and the motion along the conveyor ensures the entire product is coated as it passes under the spray bar.  Normally such setups deploy flat fan nozzles.

Whilst the conveyor will be moving continuously the product may be spaced at intervals.  This means that spraying may only be required when a product passes under the spray bar.  If the process is fast-moving then such systems will require precise control and this will often mean air-actuated spray nozzles or electrically-actuated nozzles are required.

Dosing can be controlled by the flow through the nozzle as well as by the speed of the conveyor.  With electrically-actuated nozzles dosing can also be controlled via pulse width modulation. Such nozzles can be cycled on and off 150 times per second.  So by using very rapid on/off cycles flow can be reduced without affecting the continuity of the coating.

For simple continuous spraying systems hydraulic flat fan nozzles may be suitable.  For systems that require stop-start spraying or other more precisely controlled on/off cycles, air or electrically-actuated nozzles will be required.  Air atomisation of the spray itself may also be desirable in many coating applications as this can create a very fine spray with small droplet sizes at low flaw rates meaning better cohesion of the coating.

Spray bars for conveyors

SNP offers a one-stop shop for the design and fabrication of spray bars and complete spray bar systems for coating on conveyors. Click the Spray Bar icon below to discover more or find out more by filling in our Spray Bar Enquiry Form.

2 Stop start conveyor

In this system product is moved under a spray bar and stopped whilst the coating is applied.  The conveyor then moves the product on.  This may involve several spray coating points, i.e. multiple applications of spray.

Typically full cone nozzles will be deployed so that an even coating of fluid is delivered to the stationary target.  In most cases air actuation of the nozzle will be required to ensure a responsive on/off cycle.  Air atomisation of the spray itself may also be suitable.

Spray bars for stop start conveyors

Get precision spraying for your coating lines with complete spray bar systems for new process lines or we can provide replacements for your existing spray bars. View our product icon below to learn more or get in touch with our Spray Bar Enquiry Form.

3 Drum coating

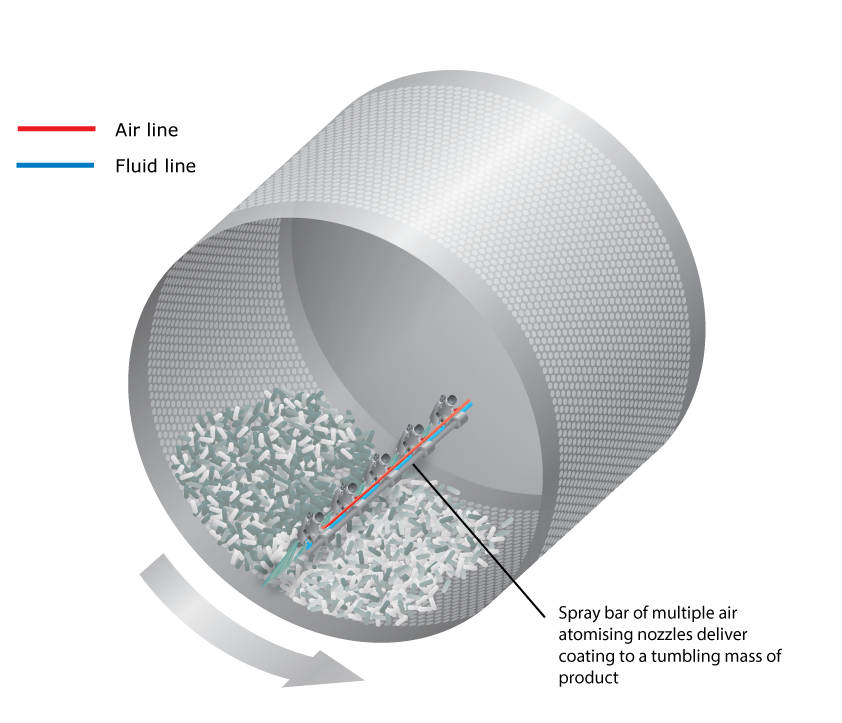

Drum coating spray barThe coating of pelleted or tablet products needs a different type of system. Running tablets along a conveyor would clearly only coat one side and the sheer number of products would mean turning each one would be impractical.  As such these types of product are typically coated in drum coating machines.  The uncoated product is moved around in a cylindrical drum whilst spraying a coating fluid is applied.  The random motion of the products ensures that an even coating is applied to each product.  This type of coating is very common in the pharmaceutical industry for tablet coating.

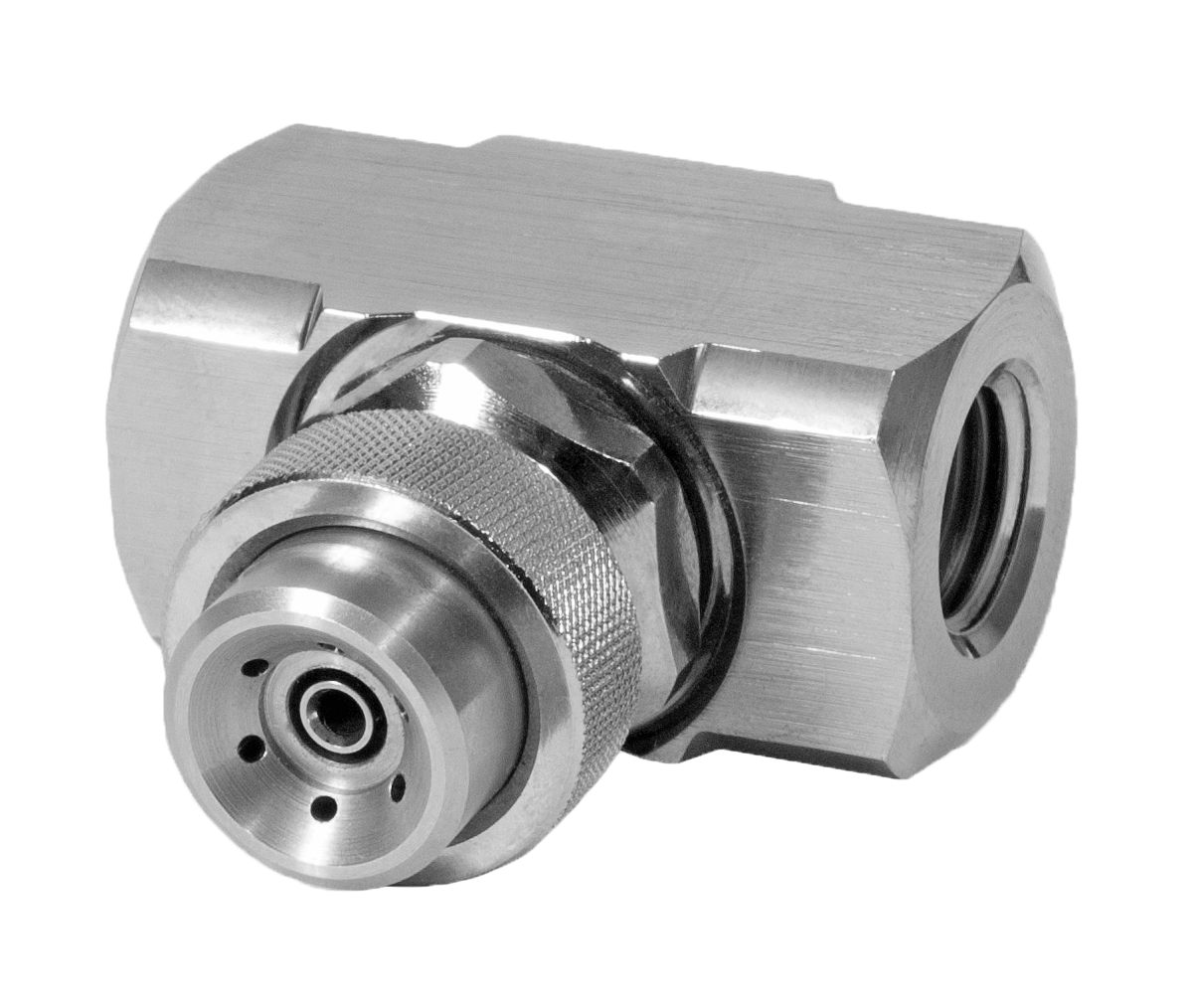

Typically high precision air atomising nozzles will be used in these applications.  As the spray is being directed at a moving mass of many tablets it is desirable to spray very fine droplets.  Finely atomised sprays mean a greater randomisation of fluid and thus a more even coating.  (Please click on the nozzle icons below to access data sheets)

Fluid-bed-coating-top4 Fluidised bed coating

Similar to the drum coating process this variation sets the uncoated tablets moving upwards in a chamber in an air current.  The solid product thus becomes 'fluidised' i.e. it behaves much like a fluid with randomised movement of individual particles.  A spray is injected into the air current so that it hits the moving tablets thus applying the coating.  As the tablets are temporarily suspended in an air stream when they come into contact with the coating spray the contact is potentially from all angles and so an even 3d coating can be applied.  This process relies on the randomised movements of the target pellets/granules so they behave in a fluid-like way when they meet the similarly randomised droplets.  As such the process mimics the mixing of two fluids.

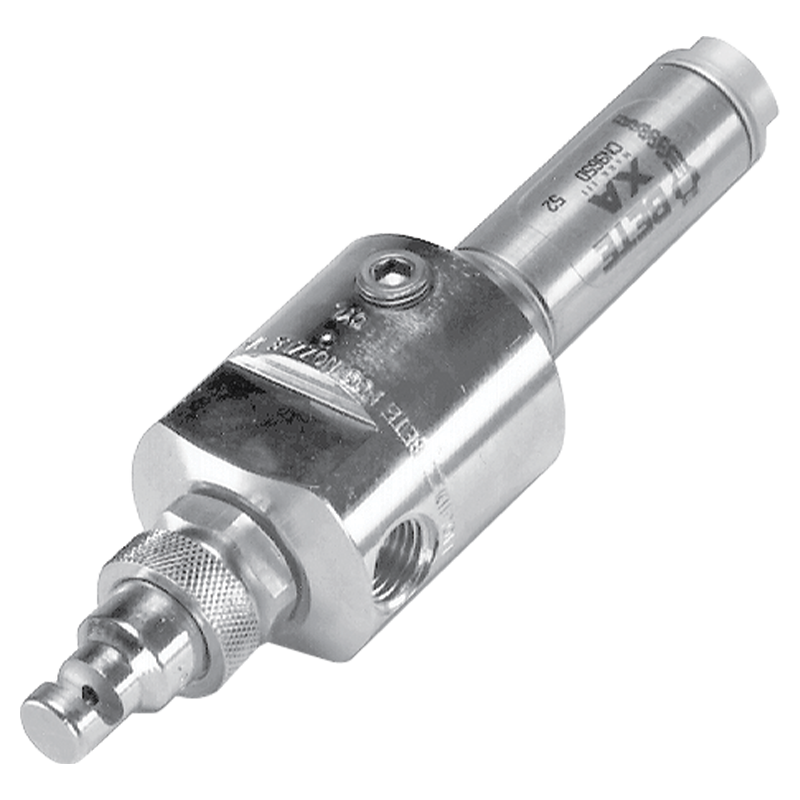

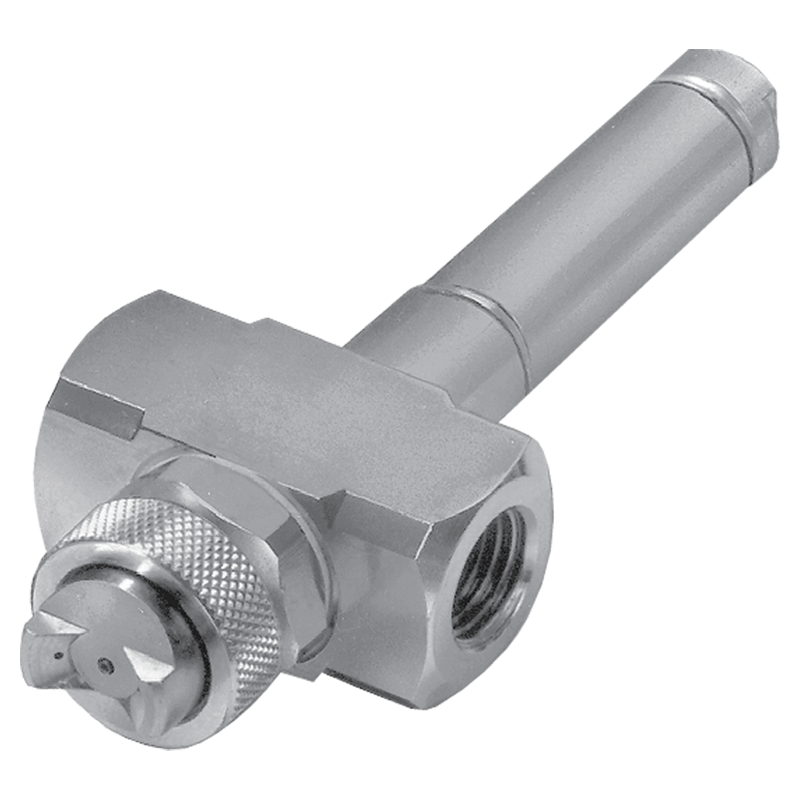

The nozzles required for this type of application need to have very well-controlled patterns, droplet sizes and flow rates.  Slight areas of overspraying with increased fluid density can, for example, result in product sticking together.  As such, SAM nozzles, with their independent air inlets for actuation, atomisation and spray angle are the logical choice.  (Please click on the nozzle icons below to access data sheets

Spray nozzles for fluidised bed coating

Engineering considerations

For more details on selecting nozzles and spray set up please click on the items in the blue menu to the right hand side of the page.  There are many factors to consider when selecting nozzles.  For spray coating applications we consider three of the most important: achieving accurate dosing, achieving accurate coverage and adjustments needed when spraying viscous fluids.

Spray bar design is also an important consideration, either for new bars or replacement headers.  In the case of flat fan nozzles, as the distance between the nozzle tip and spray target increases, the flow on the edges of the spray begins to reduce. Nozzle-to-nozzle spacing can be designed to enable sufficient spray overlap, ensuring even flow across the spray target. Angular nozzle alignment also plays a role in achieving the desired mode of spray overlap. The design of the piping that supplies the spray bars is an equally important consideration, as the dimensions of the pipe can directly impact the performance of the attached nozzles.

Currently, process engineers rely on multiple suppliers to deliver a functional spray bar. This adds significant project risk in the form of delays, spray bar quality issues, increased costs, and uncertainty regarding the accuracy and precision of the spray. As a result, process and operational managers are often left to deal with the inefficiency costs post-installation. At SNP, you can leverage our nozzle expertise to design and manufacture your complete spray bar.

Coating engineering considerations

Coating nozzles
