Industrial and food factory cleaning & washdown systems
Maintaining hygiene is a vital process particularly in the food processing, beverage and pharmaceutical industries. High-quality, efficient cleaning and disinfection equipment helps businesses meet even the most stringent sanitising requirements.
Washdown is the essential process of maintaining hygiene by removing soils, reducing bacteria to safe levels, and eliminating harmful pathogens across equipment, environments, and high‑contact surfaces. It brings together the three core hygiene actions: cleaning, which removes dirt and organic matter; sanitising, which reduces bacteria to safe public‑health levels; and disinfecting, which destroys viruses, bacteria, and fungi when deeper pathogen control is required.
Our washdown product range supports all stages of this process, from robust foamers and high‑pressure applicators to entryway systems and CIP solutions, helping facilities achieve consistent, compliant hygiene standards across food production, industrial, and commercial environments.
Making the most of every drop of chemical
Lafferty equipment is engineered to help facilities get the maximum performance out of every drop of cleaning and sanitising chemical:
- Precise venturi dilution systems ensure chemicals are blended at accurate, repeatable ratios
- Rich, clinging foams expand solutions to increase coverage and extend contact time without waste
- Many systems explicitly reduce over‑application by providing visual confirmation of full surface coverage and by using metering tips that control exactly how much concentrate is drawn.
- Equipment is simple to use and can be placed strategically for easy access and wherever washdown needs to happen
Together, these features allow operators to achieve superior hygiene results while using chemicals efficiently and responsibly.
Solutions include:
Entryway Sanitising Systems
What they are:
Automated foam‑applicator systems that project sanitiser onto entryway floors to prevent cross‑contamination. These systems operate using UK mains water pressure (typically 1–4 bar) and create clinging foam via venturi dilution with compressed air for increased coverage and contact time.
Benefits:
- Automated, repeatable sanitising at set intervals
- Consistent dilution and coverage
- Adjustable foam wetness
- Ideal for moderate‑ to high‑traffic hygiene‑critical areas
Products
- Timed Entryway Foam Sanitiser (976500):
Designed for personnel doors (≈0.9 m width). Single Spreader™ nozzle with a 3' × 4' pattern. Timer‑programmable; available in 24 V. - Timed Entryway HV Foam Sanitiser (976560):
Designed for wide overhead doors (≈2.4–4.8 m). Uses dual HV Spreader™ nozzles for wide coverage. Optional alert strobe; available in 24 V.
Hand Hygiene Dispensers
What they are:
Fully mechanical, stainless‑steel sanitiser dispensers requiring no power. Operated via foot pedal to eliminate hand contact and reduce contamination risk.
Benefits:
- Completely touch‑free
- Takes 1‑litre and multi‑litre bulk containers (no proprietary cartridge)
- Strong, industrial stainless construction
- Lockable cabinet for theft prevention
- Adjustable dose to control cost‑in‑use
Products:
- Sentry Secure Hand Sanitiser Dispenser (976901‑LB):
Free‑standing or mountable; suitable for food prep, healthcare, retail, schools, and public spaces.
Portable Hose‑End & Airless Foamers
What they are:
Portable systems that create foam using either mains‑pressure venturi action or high‑pressure water. Ideal for mobile cleaning or sites without compressed air.
Benefits:
- Quick setup
- Visual confirmation of coverage
- Flexible, lightweight, and cost‑efficient
- Works with standard hose supply
Products:

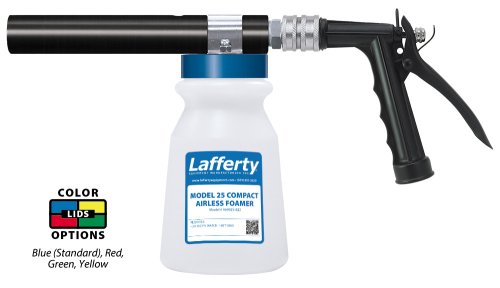

- Model 25 Compact Airless Foamer (969925‑B32):

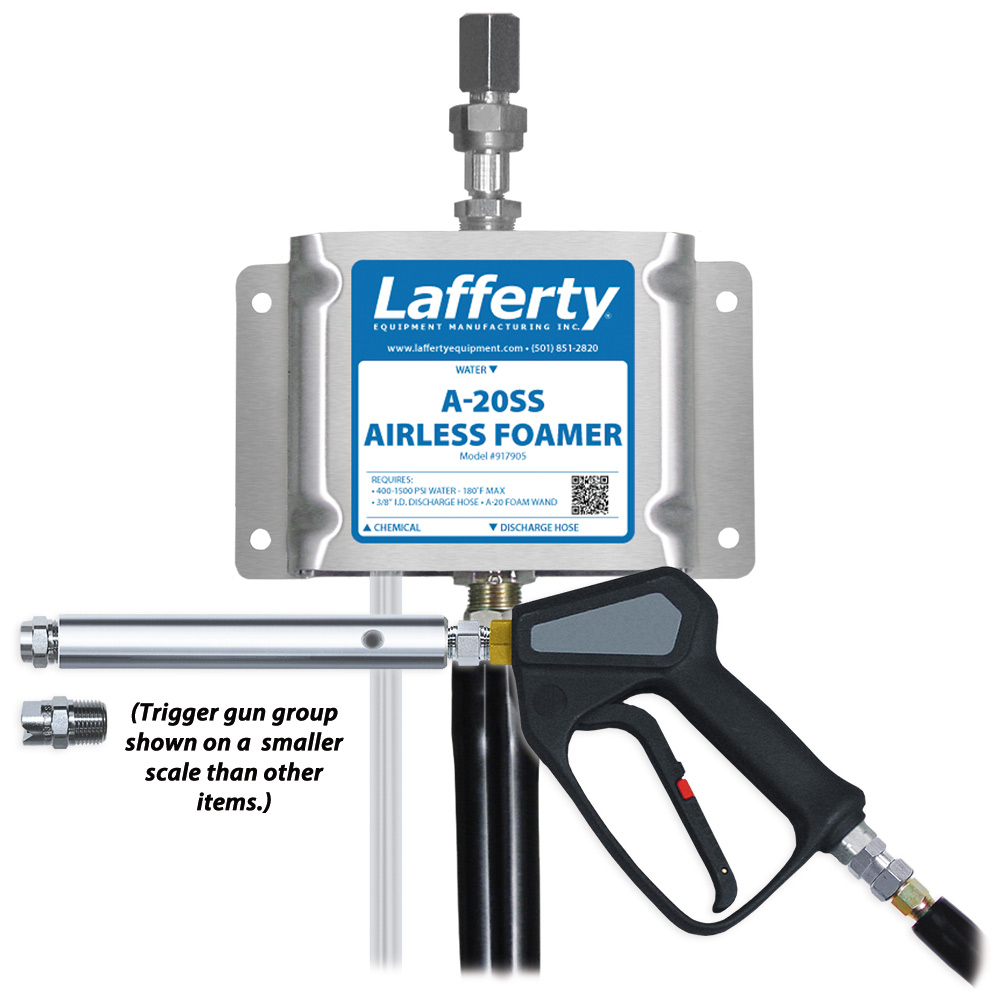

Bottle‑fed (≈1 L equivalent), produces wet foam, projects up to ~3.5 m. Works even with low mains pressure (~1.4 bar). - A‑20SS Airless Foamer (917905):
For high‑pressure water lines (~27–69 bar). Atmospheric‑air entrainment produces strong foam throw (up to ~3.6 m).
Mains‑Pressure Foamers (≈1–8 bar supply)
What they are:
Wall‑mounted foamers that use standard or boosted mains water pressure plus compressed air to generate rich, clinging foam for medium‑to‑large surfaces.
Benefits:
- Reliable venturi dilution
- Adjustable foam wet/dry consistency
- Water and air gauges reduce setup time
- Durable stainless‑steel or polypropylene construction options
Products:
- LC Foamer (915105‑G):
Polypropylene foamer body; cost‑effective. - Ultimate SS Foamer (914115‑G):
Stainless‑steel foamer body; maximum chemical and temperature resistance.
High / Boosted‑Pressure Foamers (≈8–70 bar)
What they are:
Foamers designed for boosted water systems or pressure washers. Use venturi dilution + compressed air to produce large volumes of clinging foam with long throw distances.
Benefits:
- Rapid coverage for large areas
- Strong foam projection (up to ~4 m)
- Highly chemical‑resistant stainless components
- Ideal for industrial washdown
Products:

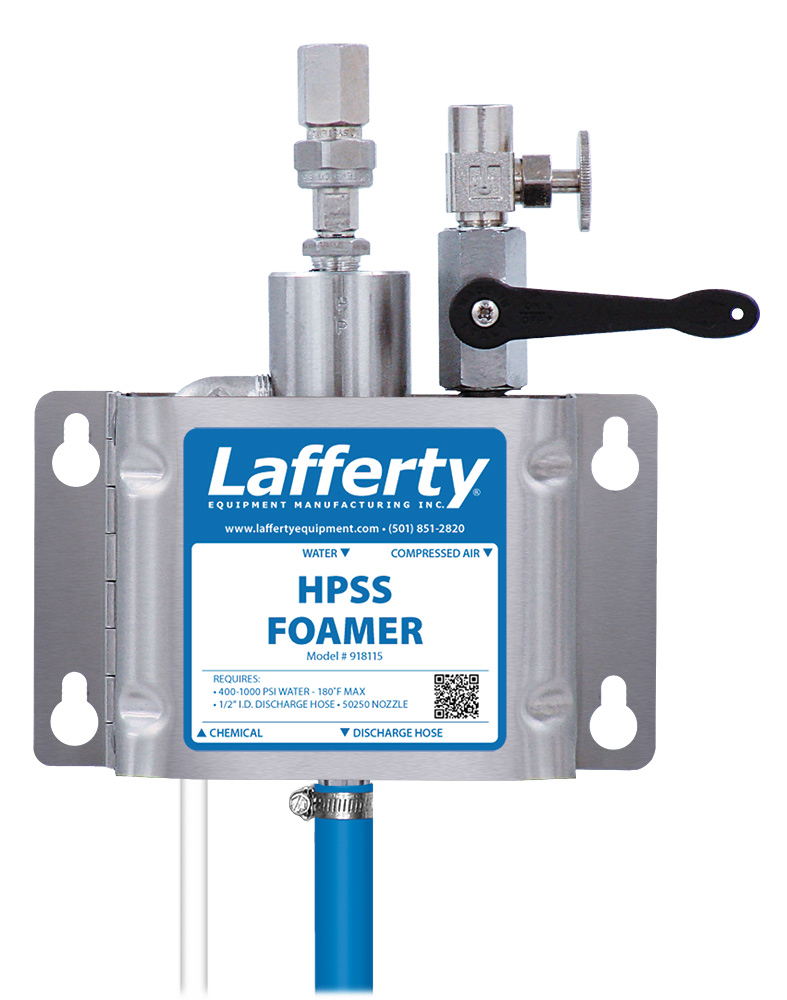

- HPSS Foamer (918115) / HPSS Foamer (No Hose) (918115‑NH):

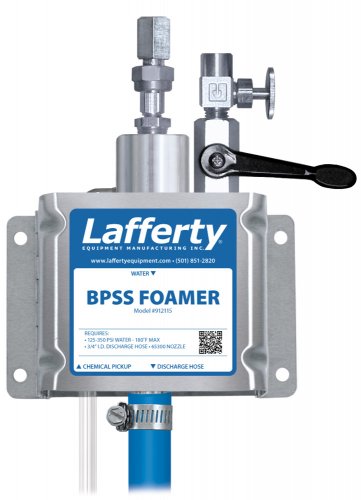

Stainless steel, fan nozzle, optional zero‑degree nozzle for long throw. - BPSS Foamer (912115):

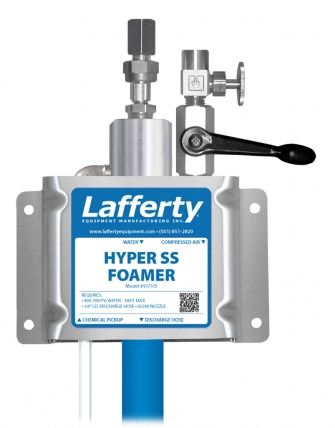

For boosted mains (≈8–24 bar); fast medium‑volume coverage. - Hyper SS Foamer (917115):
Higher flow for faster coverage; strong foam throw.
Compressed‑Air Tank Foamers
What they are:
Portable, stainless‑steel pressure‑tank foamers. These units are filled with ready‑to‑use solution and then pressurised with compressed air to generate foam for extended periods.
Benefits:
- Long run‑time per fill (e.g., 15–34 minutes depending on tank size)
- No mains water required
- 316L stainless construction and ASME‑rated tanks
- Excellent for large‑area sanitation
Products:

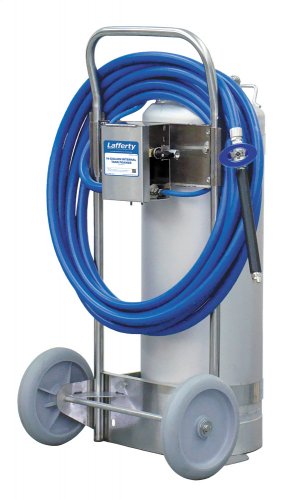

- 16 L (60.6 L) Internal Tank Foamer (925916):

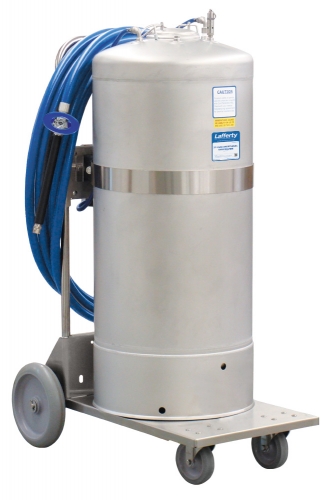

Compact cart, ~15 minutes of foam output per fill. - 141.5 L Internal Tank Foamer (925937):
Larger unit, ~34 minutes of foam output per fill; ideal for extended cleaning cycles.
Chemical Proportioners & Mixing Stations
What they are:
Wall‑mounted, mains‑pressure‑driven chemical dilution systems. Venturi injectors draw concentrate and mix automatically using colour‑coded metering tips.
Benefits:
- Eliminates manual chemical mixing
- Improves accuracy and chemical cost‑control
- Hands‑free ball‑valve activation options
- Backflow protection
- Configurable flow rates for bottles, buckets, or large containers
Products:

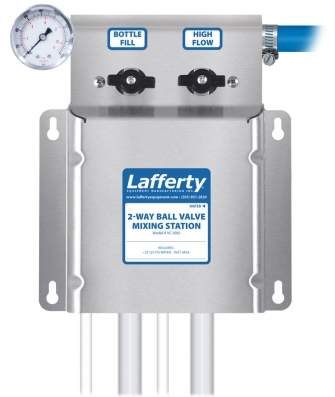

- 2‑Way Ball Valve Mixing Station (985200):
ASSE‑1055 certified; choose Bottle‑Fill, Low‑Flow, or High‑Flow per valve. - 2‑Way Mixing Station BF/HF (VC‑1065):
One Bottle‑Fill valve paired with one High‑Flow valve; flexible for multiple container sizes.
Accessories & Fluid‑Handling Equipment
What they are:
Supporting equipment that ensures clean, safe chemical pick‑up, hose management, and system reliability.
Benefits:
- Prevents leakage and contamination
- Increases system durability
- Reduces operator fatigue and clutter
Products:
- Drum Stick (491643):
Chemical pick‑up lance with Viton or EPDM seal options; Hastelloy strainer; fits standard drum openings. - Stainless Steel Hose Reel (224178‑A):
Heavy‑duty hose management system; suitable for hoses up to 15 m (50 ft); includes jumper hose.
CIP Conveyor Sanitising Systems
What they are:
Clean‑in‑Place systems designed to sanitise conveyor belts using mains‑pressure venturi dilution. Fully adjustable spray arms with Spreader Nozzle™ provide wide, even coverage.
Benefits:
- Adjustable spray height, angle, and width
- Rapid sanitiser delivery
- Converts quickly between CIP and manual sanitising via quick‑disconnect wand
- Suitable for food production environments
Product:
- Conveyor‑Mate 315 Sanitiser System (975910):
Includes adjustable stainless spray arm, 315 Sanitiser dilution body, and manual wand. Configurable in low, medium, or high foam output based on conveyor size.
