NFD Dovetail Nozzle

NFD Dovetail Fan Nozzle

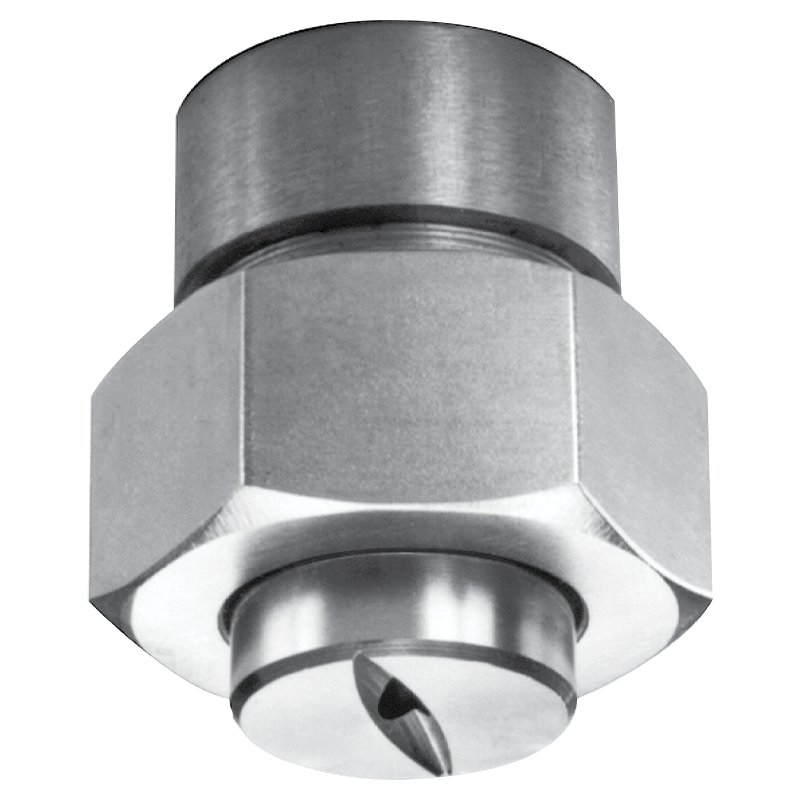

The NFD is a flat fan nozzle that consists of a base, a dovetail nozzle tip, and a retaining cap. The dovetail design ensures that the spray tip aligns at a precise offset angle. The off-set angle is in place to ensure that individual spray patterns do not interfere with each other when they overlap in a typical spraybar setup. The NFD nozzle can be used in any spray application where a standard flat fan nozzle would be used for example:

  • Spray bars
  • Coating
  • Mositening
  • Cleaning
  • And more.

pdf_ic

Design Features

    • Dovetail joint guarantees alignment of interchangeable tips
    • Dimensionally compatible with other dovetail systems
    • Tips offset 5° or 15° for overlapping spray patterns
    • Tapered overlapping spray provides uniform coverage
    • Male, female and welded connections
    • Other sizes available upon request

Spray Characteristics

    • Spray pattern: Flat Fan
    • Spray angles: 20°, 30°, 45°, 60°, 90°, and 120°
    • Special angles are available on request
    • Flow rates: 0.159 to 358 l/min
