NFS Stubby Flat Fan Nozzle

NFS Stubby Fan Nozzle

The NFS nozzle is a flat fan spray nozzle with an extremely short profile. This makes it the nozzle of choice where space is extremely tight. The NFS comes in a variety of different spray angles and flow rates and in multiple threads. The NFS finds use in many applications including:

  • Lubrication
  • Moistening
  • Product cooling
  • Cleaning
  • And many more.

pdf_ic

Design Features

    • Extremely short length for minimum projection and maximum clearance
    • Produces a flat fan spray pattern available in a variety of spray angles
    • Available in straight (parallel) threads only, NPS and G
    • Requires gasket to seal connection

Spray Characteristics

    • Spray pattern: Fan
    • Spray angles: 20°, 30°, 45°, 60°, 90° and 120° standard

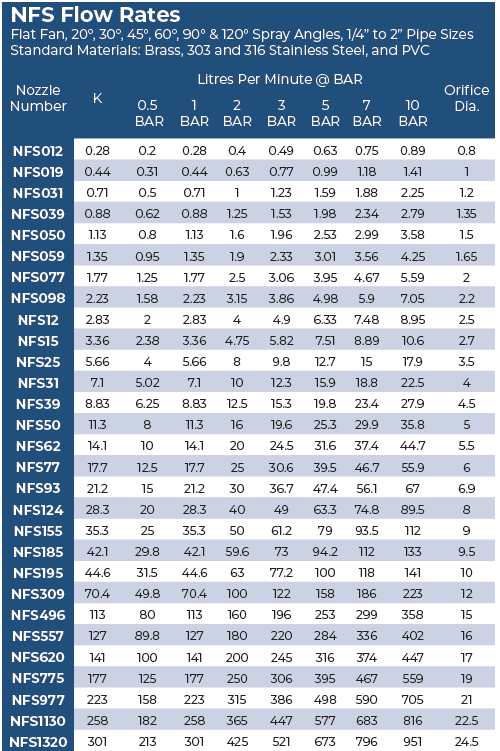

    • Flow rates: 0.20 to 951 l/min
