Spray Nozzle

AFF

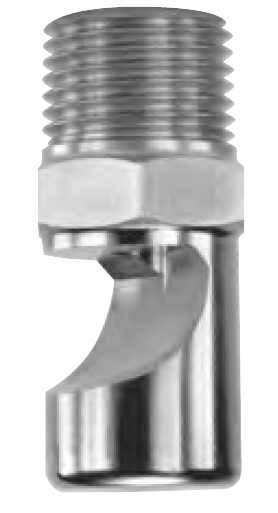

AFF Fire Fighting Flat Fan nozzle

AFF Wide angle deflector fan nozzle

The AFF is a deflector-style flat fan spray nozzle with an extra wide-angle pattern. It produces a relatively coarse spray with a medium impact. The spray is deflected by 75º from the original direction of the fluid.

AFF nozzles are used in firefighting applications, such as:

  • Deluge
  • Water Walls
  • Offshore Fire Suppression

pdf_ic

Design Feature

    • One-piece construction
    • Clog resistant
    • Durable
    • All 3/8” FFs in Brass are available with UL approval
    • Male connection

Spray Characteristics

    • Extra-wide 145° spray angle
    • Medium-impact spray
    • Spray discharge deflected 75° from inlet axis
    • Coarse atomisation j Spray pattern: Flat Fan
    • Spray angle: 105° and 145°
    • Flow rates: 0.510 to 757 l/min
