Spray Nozzle

HydroWhirl® Mini PVDF

Rotary cleaning head

HydroWhirl® Mini SS

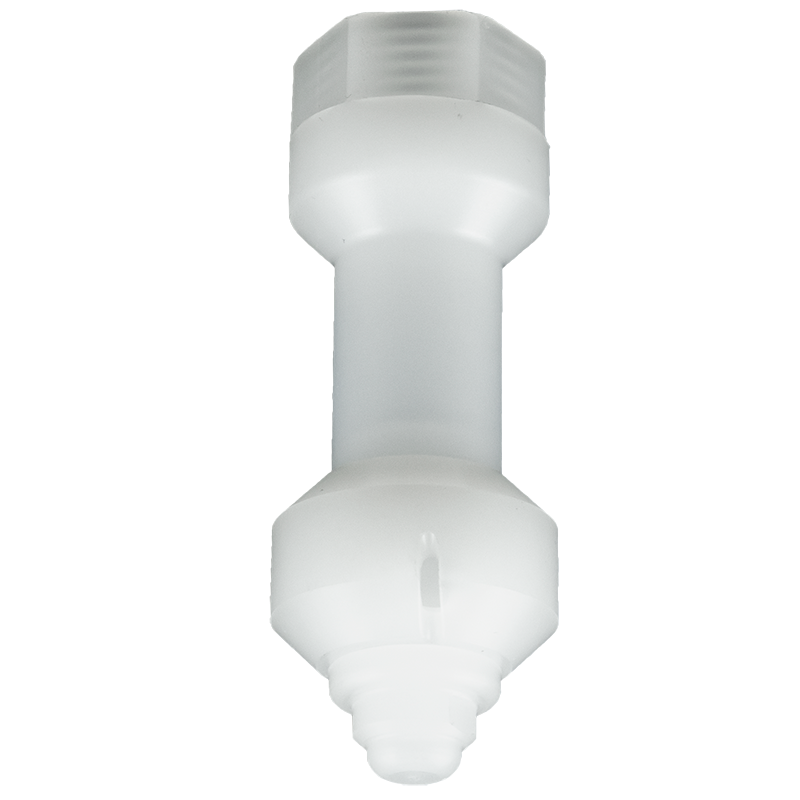

The HydroWhirl® Mini tank cleaning nozzle directs the cleaning water through a rotating head at the tip of the spray assembly and produces a vigorous moving spray action against all areas of the tank wall. The spray pattern from the HydroWhirl Mini® head uses impact and repetition to wash the tank quickly. Its compact size and tough material design makes it ideal for cleaning harsh substances such as chemical residues. For non-corrosive  environments, see the HydroWhirl® Mini SS.

Design Feature

    • Fluid-driven, self-flushing
    • Durable compact design, maintenance-free
    • Made from FDA-compliant PVDF material
    • Corrosion-resistant
    • Hydrostatic wear free slide bearing
    • Threads available: 1/2” NPT/BSPP female

Spray Characteristics

    • Vigorous spray action
    • Spray Angles: Complete 360° spray coverage

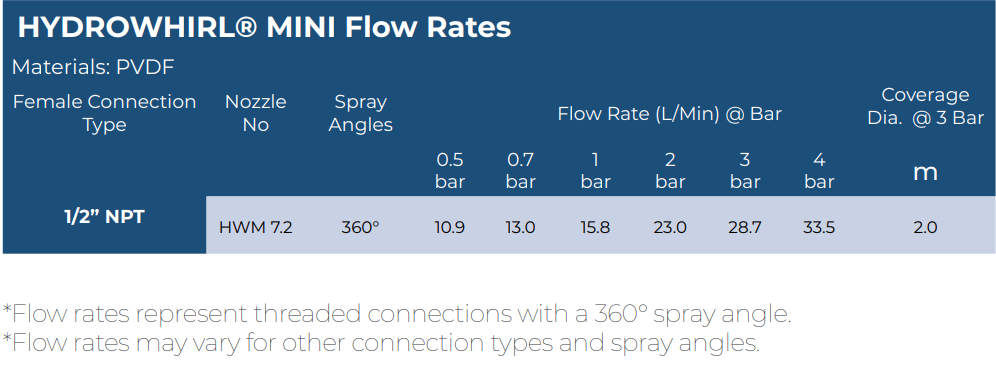

    • Flow Rates: 10.9 to 33.5 L/min
    • Max Temperature: 90°C
    • Filtration: Line strainer with a mesh size of 0.3mm/50 mesh
