Spray Nozzle

Orbitor Eco

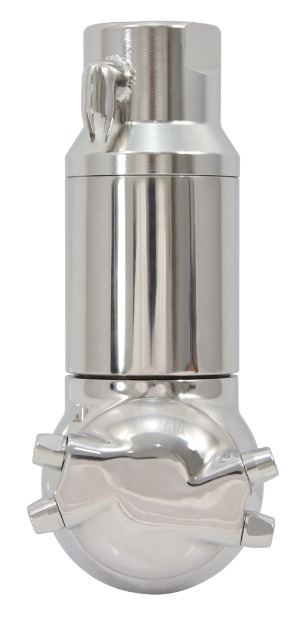

Orbitor Eco - rapid cycle rotary jet cleaner

Orbitor Eco - Rapid Cycle Rotary Jet Cleaner

The Orbitor Eco is a fully self-cleaning machine and is made from food/pharmaceutical-grade materials. The Orbitor Eco can complete a cleaning cycle in under two minutes. With such fast cleaning cycles and low flow rates, it is the most efficient way to clean and rinse light to moderate residues

pdf_ic

Design Features

    • Very fast cycle times between 1.8 - 6 minutes
    • Up to 95% water saving when compared to static spray balls
    • Up to 75% water saving when compared to rotary spray balls
    • Entirely fluid driven meaning no external power source is required
    • Self lubricating j Powerful jets up to 5 metres in length
    • Easy to maintain. Can be stripped and reassembled in 15 minutes.
    • Self-cleaning and hygienic

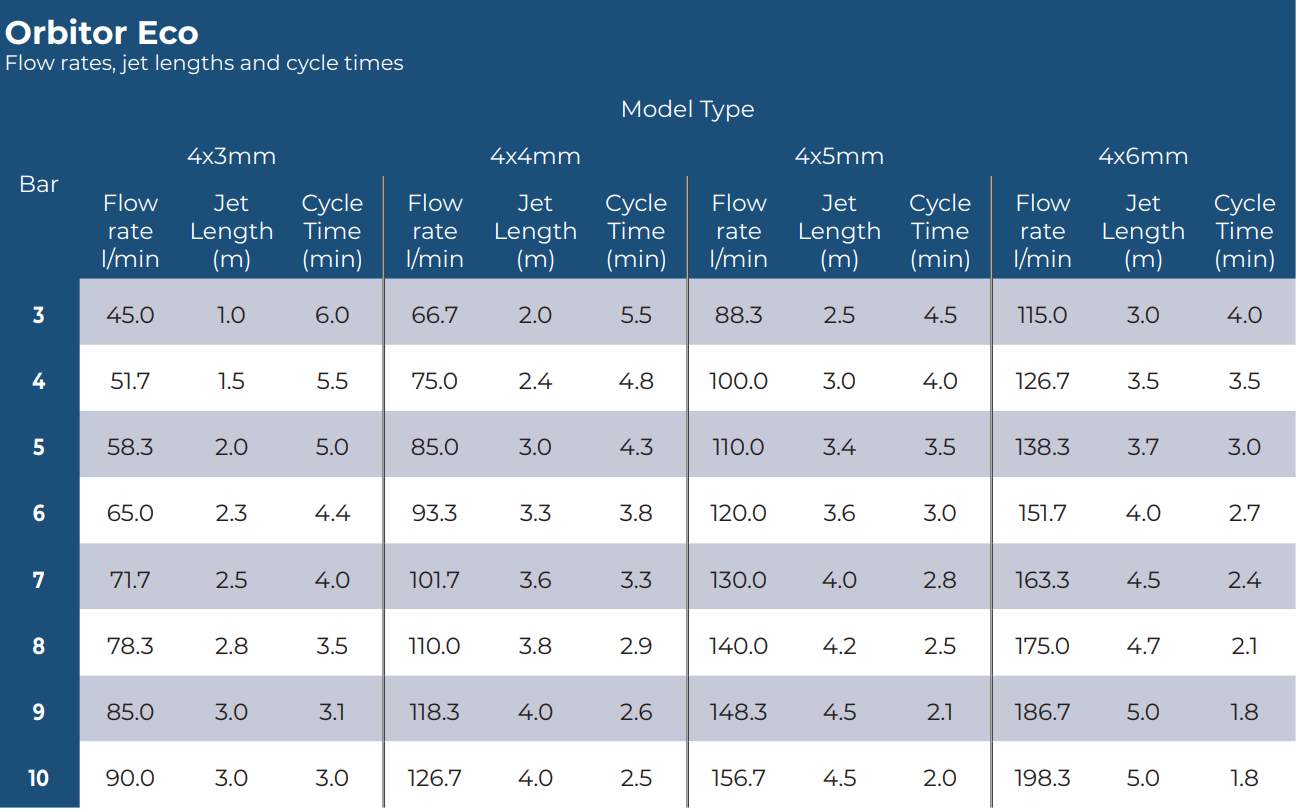

Spray Characteristics

    • Flow rates: 45 - 198 l/min
    • Working Pressure: 4 - 10 bar
    • Jet length: Up to 5 metres j Wash pattern: 360°
    • Cycle times: 1.8-6 minutes
    •

    Materials:

    • Housing: 316L
    • Nozzle Head: 316 SS
    • Gears: PEEK + 316 SS
    • Bushings: Carbon Filled PTFE
    • Weight: 2.5Kg
