SAM high precision air atomising nozzle

SAM Precision Control Air Atomising Nozzle

SAM Precision Control Air Atomising Nozzle

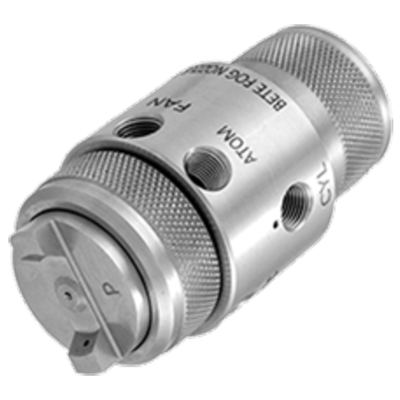

The SAM nozzle represents a new level of spray control. With three air inlets, the on/off cycle, atomisation level and spray pattern width can all be varied independently. This gives a huge degree of control for precision spraying systems.

  • Applications include:
  • Precision Coating
  • Drum Coating
  • Fluidised Bed Coating
  • Wurster Coating
  • And more.

Design Features

    • Separate atomising and fan air lines provide variable coverage and fine control of drop size without affecting liquid flow rates.
    • Higher atomising air pressure yields finer drop size; higher fan air pressure yields broader patterns
    • Pneumatically-controlled shut-off and clean-out built in

Spray Characteristics

    • External mix; allows spraying of viscous materials
    • Liquid flow rates are independent of air
    • Precise metering of the liquid flow rate
    • Removable plug provided for liquid
