Spray Nozzle

XAXW

Siphon Fed Full Cone Air Atomising Nozzle

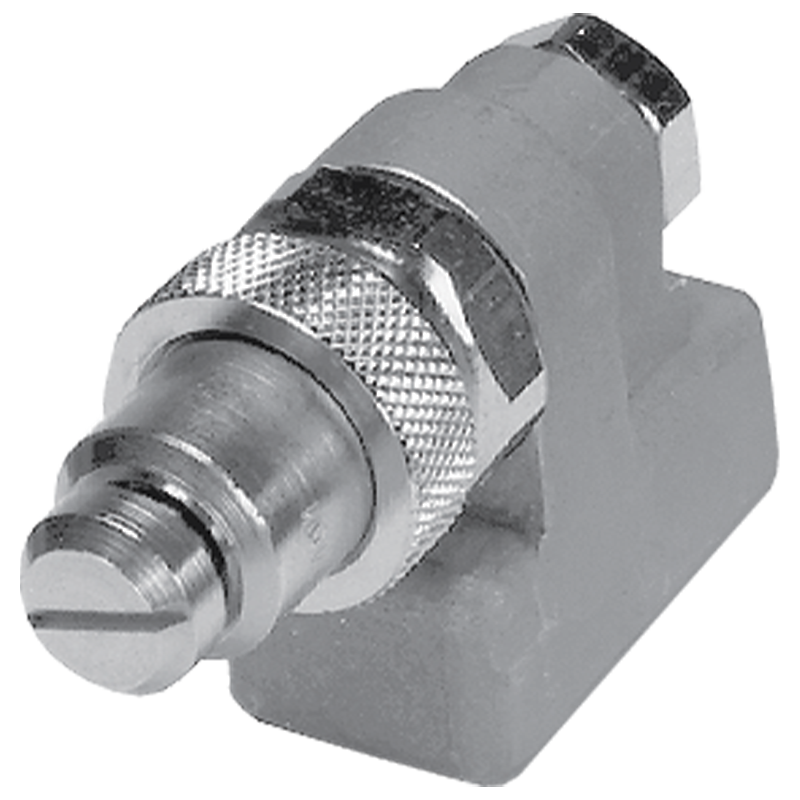

XAXW Internal Miz Extra Wide Angle Air Atomising Nozzle

XAXW Internal Miz Extra Wide Angle Air Atomising Nozzle

The XAXW is a special internal mix air atomising nozzle designed to give a very wide, 180° spray dispersal. It gives fine levels of atomisation and is an ideal nozzle for any application where a wide dispersal of fogs is required. Applications include:

  • Humidification
  • Disinfecting
  • Sanitising
  • And more

Design Features

    • Requires pressurised air and fluid to operate
    • Internal mix gives maximum atomisation
    • Different body options with variable inlet orientations
    • Adaptor for mounting the nozzles through walls

Spray Characteristics

    • Hollow cone spray pattern
    • Flow rates between 4.2 and 48 litres per hour
    • Small spray projection j 180º wide distribution pattern
    • Very fine atomisation
XAXW  Flow rate data wide angle ait atomising nozzle
