Pecision control panelSpray Control Panels

FlexFlow is a control panel used in conjunction with either the EHP or EHPi electrically-actuated spray nozzles. The system is used to control precisely when and for how long the EHP(i) nozzles spray for. This can be used to program in pulse wave modulation to vary the flow rates or can be used to stop and start a spraying cycle.

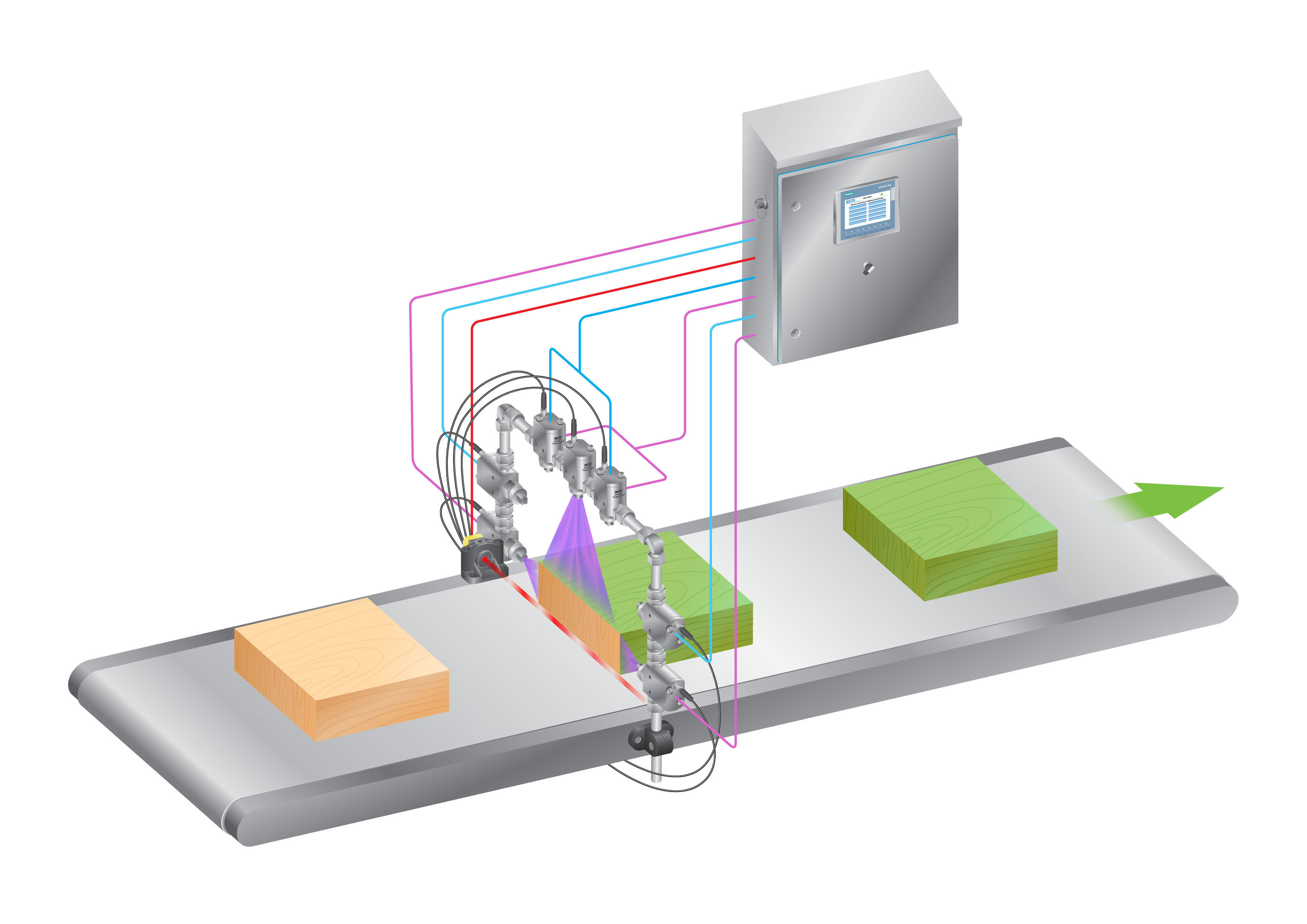

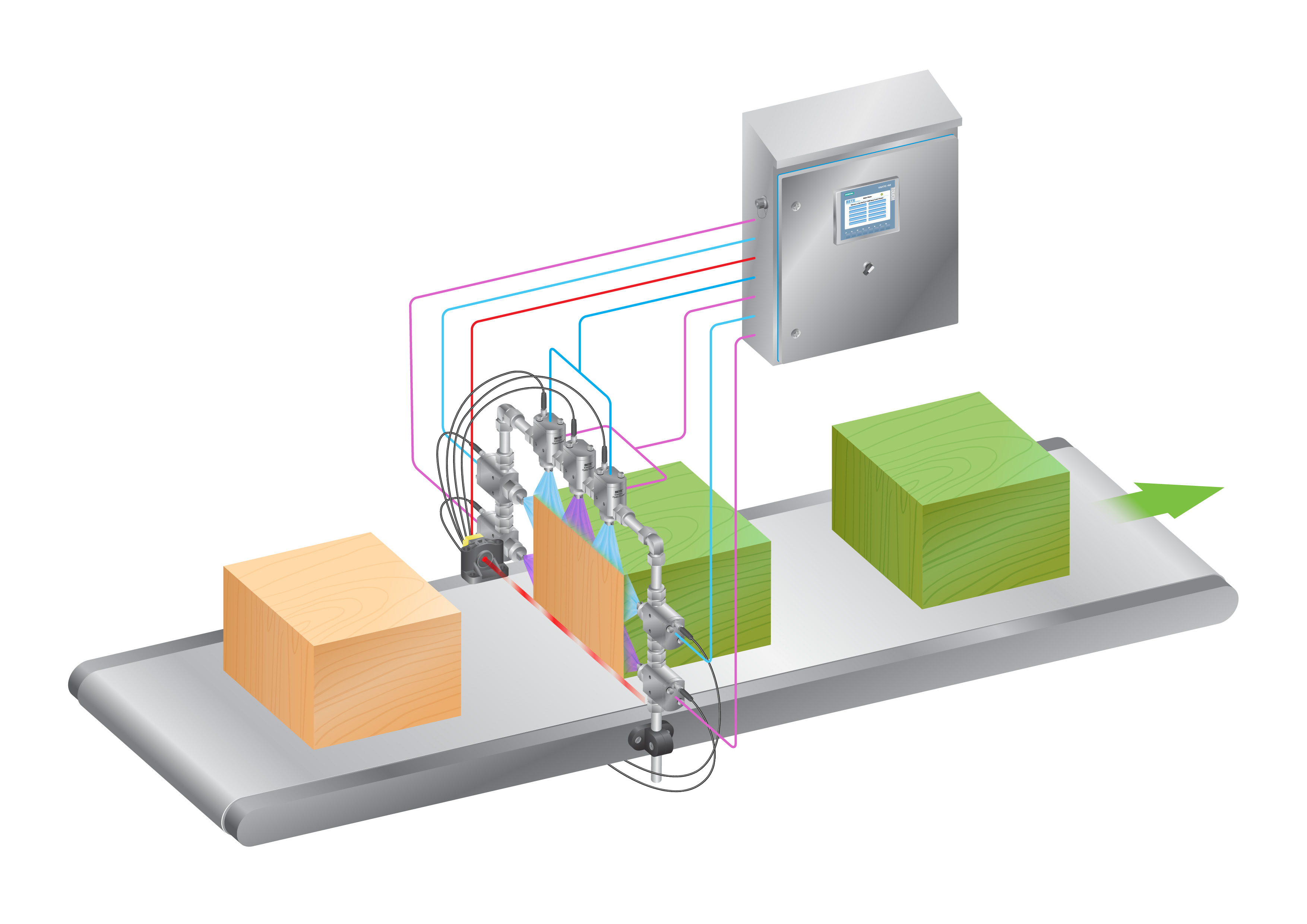

The FlexFlow system can be linked to a wide variety of proximity sensors so that spraying on conveyors can be fully automated. Similarly, different spray programs can be stored for different product runs requiring variable dosing.

The FlexFlow systems comes in two variants, the FlexFlow1000 and FlexFlow2000.



The FlexFlow 1000

The FlexFlow 1000 can operate up to 12 nozzles. It has two zones of precision control with up to 6 nozzles in each zone. Zones 1 and 2 can be programmed independently allowing for two different precision spray processes to be controlled from the same box.

• HMI touch screen includes intuitive operations for streamlined control and diagnostic overview for troubleshooting
• Operate up to 12 nozzles
• Two zones of precision control
• Operate up to 6 nozzles in each zone
• Zones 1 and 2 can be programmed with
independent or synchronous settings



The FlexFlow 2000

The FlexFlow 2000 offers even more flexibility. It allows for 20 nozzles to be managed entirely independently i.e. each can be separated into its own spray zone with its own spraying parameters. Of course, as many nozzles out of the total of 20 can be grouped together in a zone.

• HMI touch screen includes intuitive operations for
streamlined control and diagnostic overview for troubleshooting
• Match spray volume to conveyor speed with an auto-adjust duty cycle
• Extremely flexible in zone operations – can operate
up to 20 nozzles with up to 20 triggers in up to 20 zones
• Ethernet port for process integration
• Three versions available with an easy upgrade path:
• V1 Operates up to 10 Nozzles
• V2 Operates up to 16 Nozzles
• V3 Operates up to 20 Nozzles
