3-Way Ball Valve Mixing Station
Lafferty ASSE 1055 certified chemical proportioner that accurately dilutes chemicals to the required ratios and dispenses into any size container.

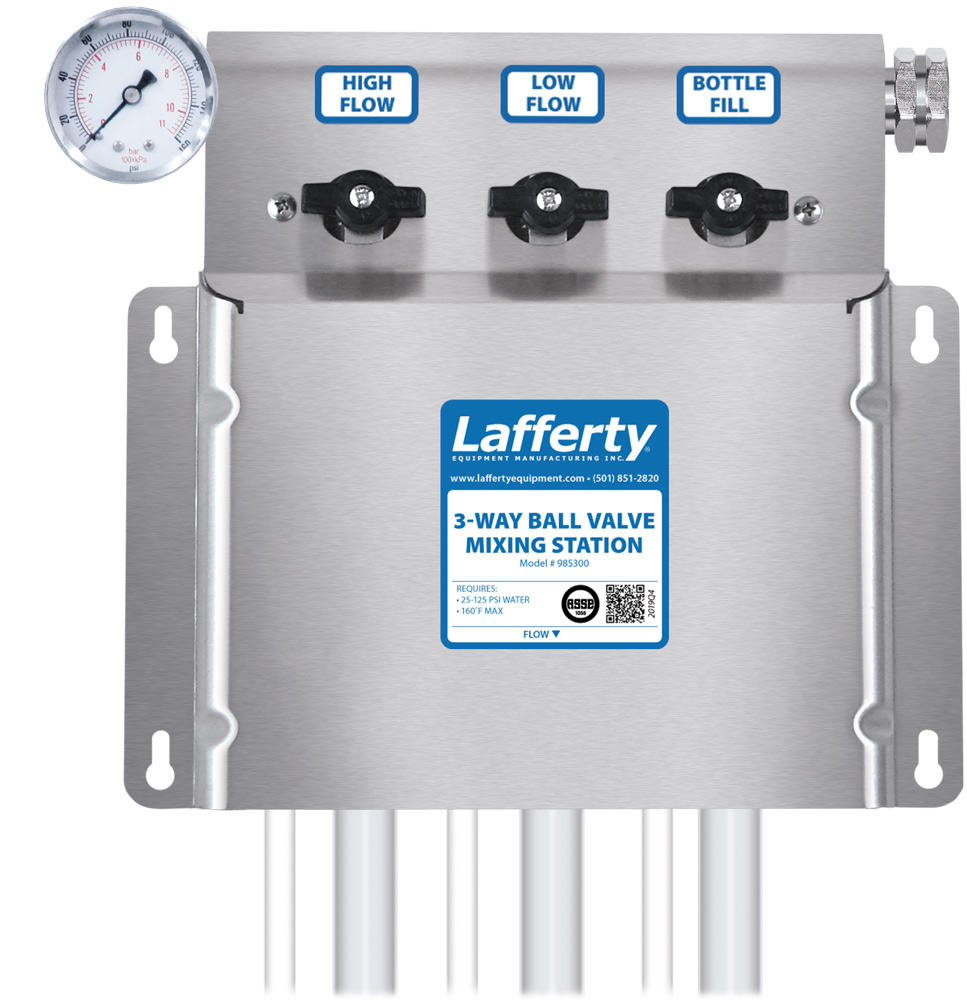

3-Way Ball Valve Mixing Station
The 3-Way Ball Valve Mixing Station is an ASSE 1055 certified chemical proportioner that accurately dilutes chemicals to the required ratios and dispenses into any size container. This venturi injection system uses city water pressure (1.7 - 8.6 bar) to draw and blend chemical concentrate into the water stream and precision metering tips to set the dilution ratio for each valve. Ball valve activation allows for hands-free dispensing. Choose a factory-set flow rate for each ball valve at the time of order (Bottle Fill, Low Flow, High Flow).
Key features
- Eliminates manual mixing and optimises chemical utilsation, employee safety and labour efficiency
- Ball valve activation allows for hands-free dispensing
- Chemical resistant wetted components ensure years of
outstanding performance with minimal maintenance - Industrial-strength design holds up in tough environments
- Water pressure gauge eliminates guessing, reduces set-up
time and helps with troubleshooting - The dilution ratio for each valve is set independently
- Draws chemical concentrate from any sized container
- Choice of left or right side water inlet
- Mixing stations can be plumbed in series
- Choice of flow rates for filling small to large containers
- Please specify the flow rate for each valve when ordering
- Bottle Fill (BF), Low Flow (LF), High Flow (HF) - Certified to ASSE Standard 1055 for backflow prevention
- Available with push lever activation (#981300)
Requirements
- Chemical Concentrate
WaterTemperature: up to 71°CPressure: 1.7 - 8.6 barSupply Line Hose: 1/2" minimum
FlowHigh Flow (Black Injector) 15.1 – 27.6 L/minLow Flow (White Injector) 7.2 – 12.9 L/min
Bottle Fill (Blue Injector) 2.3 – 3.8 L/minDilution Ratio Range @ 2.8 barIHigh Flow: 1,031:1 to 4.8:1Low Flow: 480:1 to 3.5:1Bottle Fill: 142:1 to 1.7:1
