W-20 Spray-All

Low volume spray applicator

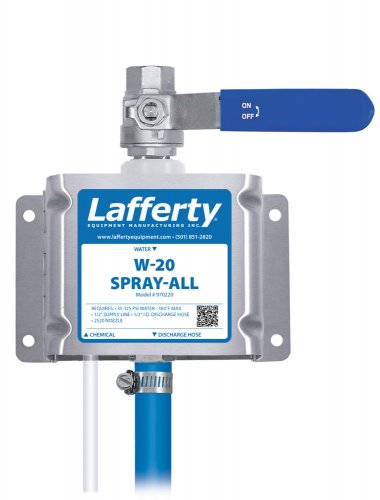

W-20 Spray-All

W-20 Spray-All

The W-20 Spray-All is a water-driven, low volume spray applicator for applying chemical solutions to a variety of surfaces. This venturi injection system uses standard city water pressure (2.4 - 8.6 bar) to draw and blend chemical concentrate into the water stream. Precision metering tips are used to create an accurately diluted solution which is projected through the discharge hose and fan nozzle as a light, uniform spray. With a flow rate of just under 3.8 L/min, this unit is great for spraying virtually any sized area or object slowly and completely with very little run-off.

Data sheet

Key features

    • Creates a low volume spray (under 3.8 L/min @ 2.8 bar)
    • Ideal for precision application in small areas and near sensitive equipment where minimal over-spray is crucial
    • Fan pattern nozzle for even coverage
    • Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
    • Industrial-strength design holds up in tough environments
    • Use it anywhere 2.4 - 8.6 bar water is available
    • Available as a "high concentrate" unit capable of creating strong dilution ratios for tough cleaning jobs (#970220HC)




Requirements

  • Chemical Concentrate

    Water
    Temperature: up to 71°C
    Pressure: 2.4 - 8.6 bar
    Flow: 3.2 L/min @ 2.8 bar
    Supply Line: 1/2"

    Hose: 1/2" x 15.2 m
    Nozzle: 2520
    Dilution Ratio Range: 19:1 to 6:1 at 2.8 bar
