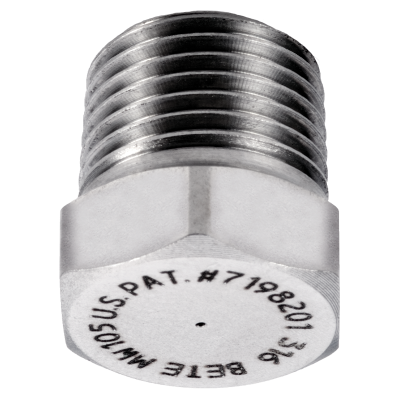

MW Misting Nozzle

The MicroWhirl (MW) nozzle is a low flow rate misting nozzle used to produce very finely atomised sprays. The spray starts out as a hollow cone pattern which quickly becomes a genuine fog at a short distance from the orifice. The MW is used in a number of applications including:

  • Air Conditioning
  • Dust Control
  • Concrete Curing
  • Humidification
  • Moistening
  • And more.

pdf_ic

Design Features

    • Outstanding atomisation
    • Rugged pinless design
    • Drip-free performance
    • Standard: 70 micron polypropylene filter
    • Optional: 200-mesh 316ss screen
    • Safety wire hole available j Patented design
    • Minimum operating pressure 7 bar

Spray Characteristics

    • Mist at low pressure; fog at high pressure
    • Spray pattern: Cone-shaped fog
    • Flow rates: 0.032 to 1.413 L/min
