NF Standard Flat Fan Nozzle

NF Flat Fan Nozzle

NF Flat Fan Nozzle

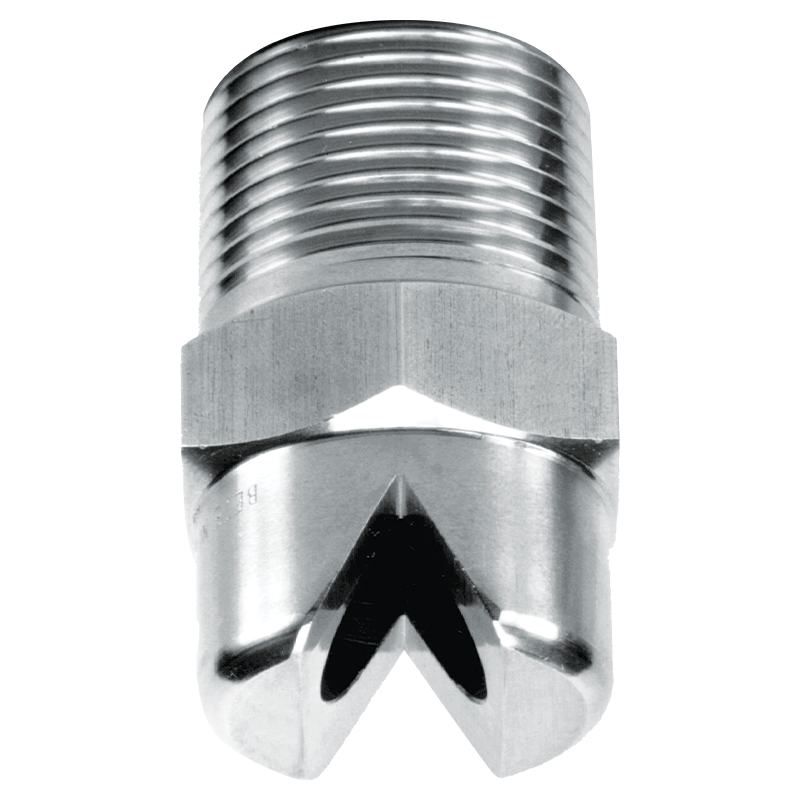

The NF nozzle is a standard flat fan nozzle. It is one of the most versatile spray nozzles with 9 different spray angles, 33 standard sizes and manufactured in many materials (metals and plastics). The NF is used in a huge array of applications including:

  • Coating
  • Washing
  • Moistening
  • Spraying additives
  • And many more.

Design Features

    • One-piece construction
    • No internal parts
    • Sizes for all applications
    • Male connection

Spray Characteristics

    • High impact
    • Uniform distribution with tapered edges for overlapping sprays
    • Extra-wide angles available
    • Spray pattern: Fan and Straight Jet
    • Spray angles: 0° to 120°
    • Flow rates: 0.161 to 3430 l/min

NF Table
