Spray Nozzle

Air Wipe

Circular, compressed air, air wipe

Air wipe

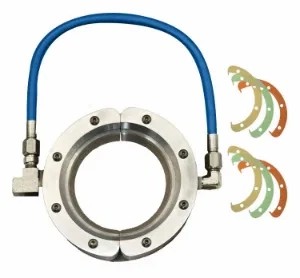

EXAIR’s Super Air Wipe provides a uniform 360° airstream that is ideal for blowoff, drying, cleaning and cooling of pipe, cable, extruded shapes, hose, wire and more. The split design offers easy clamping around the surface of the material moving through it, eliminating the need for threading. Available from 3/8" (10mm) through 11" (279mm) diameters.

All models include stainless steel screws and shims. Stainless steel wire braided hose is also included on sizes up to 4" (102mm) for added corrosion and heat resistance. Aluminum models are rated for temperatures up to 400°F (204°C) and stainless steel models for temperatures up to 800°F (427°C).

pdf_ic

Applications

    • Drying after washing, cleaning, plating or coating
    • Blowoff dust and contaminants
    • Cool hot extruded shapes
    • Uniformly wipe surfaces
    • Dry extruded profiles, rod and medical tubing
    • Eliminate solution carryover - no cross contamination
    • Blow excess water from automotive door gaskets
    • Remove excess coatings, water and oil
    • Dry tube, hose, wire, fiber optics
    • Minimize solution loss due to drag-out
    • Clean paint gun tips
    • Dry screen printed or ink-jetted surfaces
    • Clean strips and ribbon

Advantages and benefits

    • Quiet
    • Low air consumption
    • Uniform 360° airflow
    • Stainless steel hardware resists corrosion
    • Aluminum models for temperatures up to 400°F (204°C) Stainless steel models for temperatures up to 800°F (427°C)
    • Stainless steel hose supplied on sizes up to 4" (102mm)
    • No electricity, no moving parts
    • Non-contact - no wiper blade
    • Split design - compact, rugged, easy to install
    • Lightweight, low profile
    • Tapped holes for mounting
    • Variable force and flow
    • Meets OSHA maximum dead end pressure and noise requirements
