Spray Nozzle

BJ

Low Flow Flat Fan Nozzle

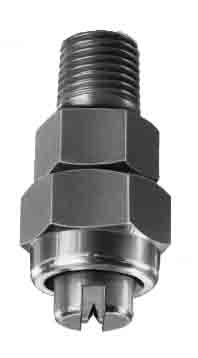

BJ Low Flow Flat Fan Nozzle

The BJ spray nozzle range is a low flow rate flat fan nozzle. It consists of three parts with a base, a spray tip and a cap nut (with an optional strainer). The base units and caps are universal meaning that spray tips can be swapped between base units.

BJ Nozzles have a wide variety of uses. Common applications include:

  • Coating Moistening
  • Lubrication
  • Spraying additives

pdf_ic

Design Feature

    • Three-piece construction
    • Interchangeable spray tips
    • Integral strainer option
    • Male or female connections


Spray Characteristics

    • Relatively coarse atomisation
    • Uniform spray distribution with tapered edges for use in overlapping sprays
    • Spray pattern: Flat Fan
    • Spray angles: 0º to 120º

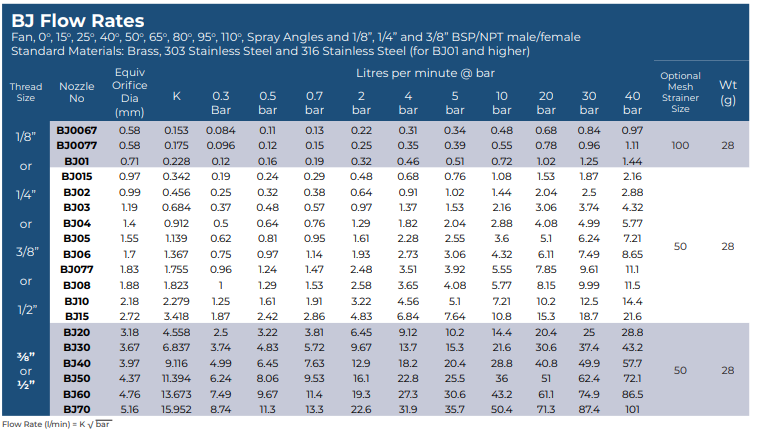

    • Flow rates: 0.011 to 101 L/min
