Cold Gun - Vortex Tube Spot Cooler

Cold Gun - Spot Cooler

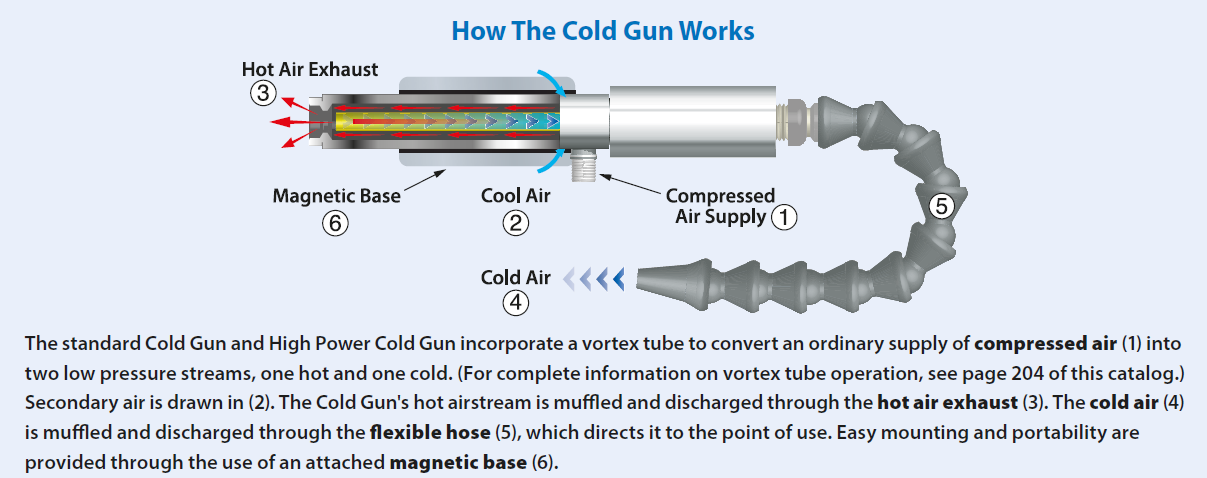

Heat buildup on dry machining operations reduces tool life and machining rates. The Cold Gun Aircoolant System produces a stream of clean, cold air at 54°F (30°C) below supply air temperature. Operation is quiet, and there are no moving parts to wear out. It removes heat to prolong tool life and increase productivity on machining opperations where liquid coolant cannot be used.

pdf_ic

Applications

    • Tool sharpening
    • Drill and cutter grinding
    • Routing
    • Plunge and form grinding
    • Milling
    • Surface grinding
    • Drilling
    • Tire grinding
    • Band sawing
    • Plastic machining
    • Laser cutting
    • Chill rolls
    • Setting hot melt adhesives


Advantages and benefits

    • Improves production rates
    • Prevents burning
    • Extends tool life - reduces breakage
    • Improves tolerance control
    • Prevents smearing of metal or plastics
    • The finished part is dry
    • Eliminates wheel loading
    • Low cost
    • Compact, lightweight, portable
    • No moving parts - maintenance free
    • Quiet
    • No coolant cost
    • No electricity
