Spin-Atex Nano Zone 0

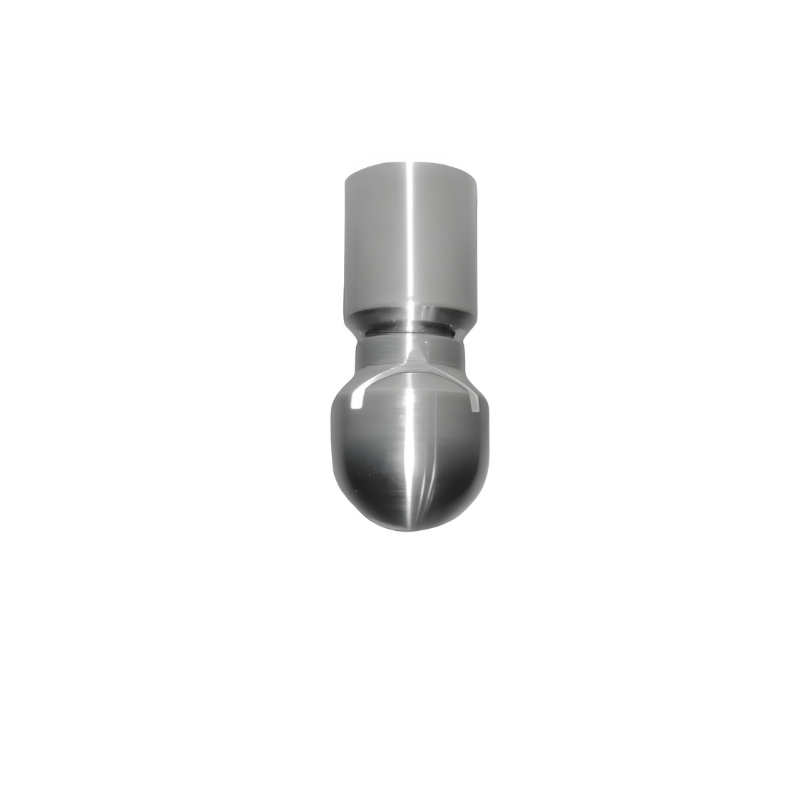

The Spin-Atex NANO is a compact rotary tank cleaning head certified for use in Atex Zone 0 environments.

Powered by the wash liquid, it operates efficiently without external energy sources. Its dual-shaft design, supported by twin stainless steel bearings, allows for versatile mounting in any position.

Suitable for use in: dryers, sprayers, pipes, small containers, filters and mixing vessels up to 1m diameter. With its short cleaning cycle, the Spin-Atex NANO reduces liquid consumption by up to 60%, making it an efficient and cost-effective solution for industrial cleaning.





pdf_ic

Design Feature

    • ATEX Zone 0 certified
    • Compact design
    • Suitable for tanks up to 1m diameter
    • Slotted spray
    • Connection: DIN EN 228-G1/8 as standard (weld-on and clip-on available on request)
    • Operates in any direction
    • Ideal for small containers such as pipes and filters
    • Materials: 316 stainless steel with 316ss bearings as standard

Spray Characteristics

    • Self-cleaning
    • Vigorous moving spray action
    • Spray Angles: 360° (others available incl: 180° down, 270° down and 270° up)
    • Flow rates:  7 – 40 l/min
    • Working pressure: 1 - 7 bar
    • Max working temp 90°C
    • Max ambient temp 180°C
