Spray Nozzle


High Flow Rate Full Cone Nozzle

High Flow Rate Full Cone Nozzle

The TC is a large, very high flow rate range of nozzles. It comes with either a male/female thread or a flanged connection. The spray produced is a coarsely atomised full cone pattern. The TC nozzle would be used in applications requiring very high flow rates including: Deluge Cooling Packed Bed Distribution Very Large Foam Control And more.

Design Features

    • One-piece body with integral vanes
    • Male, female, and flanged connections available

Spray Characteristics

    • Extremely high flow rates
    • Spray pattern: Full Cone
    • Spray angles: 60°, 90°, and 120°
    • Flow rates: 976 to 36100 L/min (Special flow rates available)

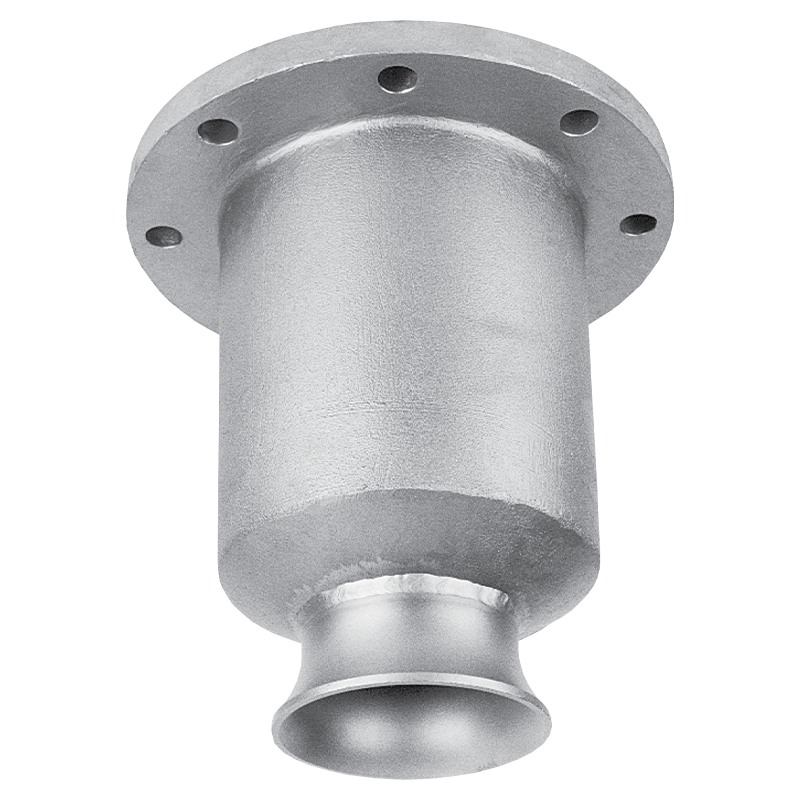

TC high flow full cone nozzle
