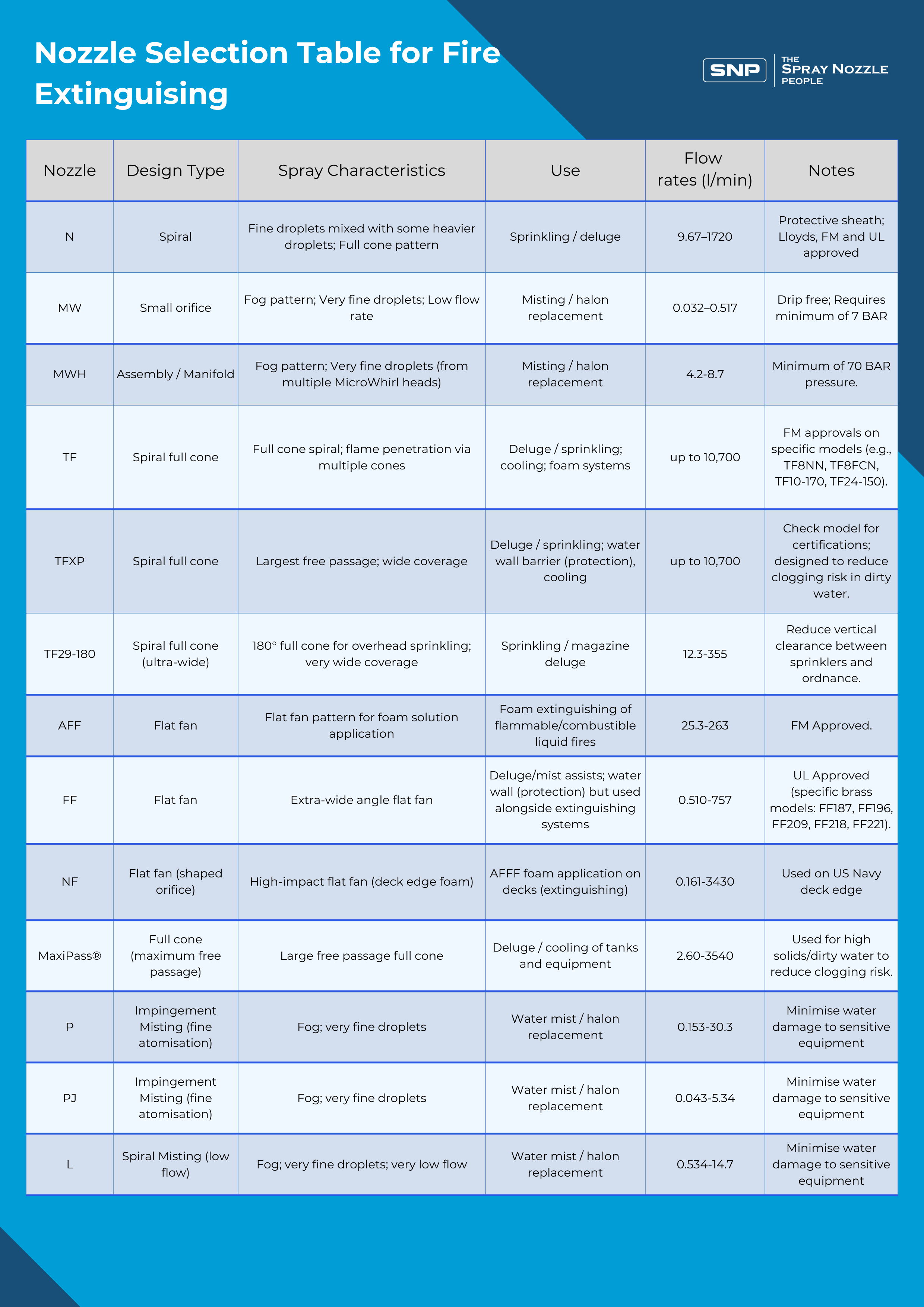

Fire extinguishing nozzle selection table

The table below summarises much of the information in the fire extinguishing nozzle section of the SNP website.  It is intended to be a handy reference guide to aid nozzle selection.  Full data on each of the nozzles listed can be accessed by clicking on the boxes in the left hand column of the table below.  The data sheets will open in a separate tab to allow easy comparisons between multiple product sheets.





Nozzle Type





Design Type





Spray Characteristics





Fire Extinguishing uses





Flow rates





Notes





Fire fighting spiral nozzle





Spiral





Fine droplets mixed with some heavier droplets



Full cone pattern





Sprinkling/ deluge





9.67-1720





Protective sheath



Lloyds, FM and UL       approved







Ultra wide angle spiral nozzle





Spiral





Fine droplets mixed with some heavier droplets



Full cone pattern



Very wide 180 degree spray angle





Sprinkling/ deluge





12.3-255





Very wide spray angle reduces the number of nozzles needed.





PJ series Low profile misting nozzle





Impingement mist nozzle





Fog pattern



Very fine droplets





Misting / halon replacement





0.043-5.34





Can operate effectively at 2 BAR fluid pressure.





Microwhirl misting nozzle





Small orifice





Fog pattern



Very fine droplets



Low flow rate





Misting / halon replacement





0.032-0.517





Drip free



Requires minimum of 7 BAR





MHW multi headed misting nozzle





Multiple small orifice





Fog pattern very fine droplets







Misting / halon replacement





4.2-8.7





Drip free



Manifold

 with multiple Microwhirl nozzles



Minimum of 70BAR pressure.
