Nozzle holders
The Uni-Spray system has a number of different holders for attaching spray nozzles to riser pipes. The MK1 and 3 designs allow for the adjustment of the direction and orientation of the spray nozzle whilst the MK2 is a fixed nozzle holder.
The nozzle holders are suitable for pipework from 1” to 2” and can accommodate either Uni-Spray ball socket nozzles of various types or threaded nozzles from 1/8” to ½” BSP or NPT thread.
MK1 - Clamp adjustable nozzle holder

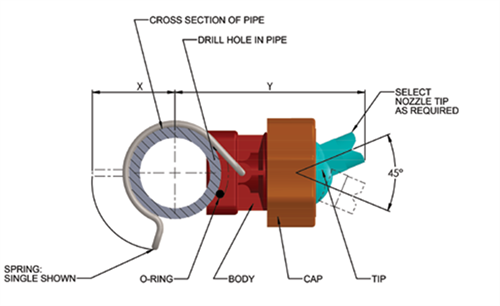

A single or double clamp style holder with an adjustable ball socket that can either take a moulded Uni-Spray ball socket nozzle or a male threaded nozzle from 1/8” to ½”.
![MK1 diagram MK drawing](/images/default-source/drawings/Uni-spray/mk1-diagram.png?sfvrsn=f76ffd92_0&MaxWidth=500&MaxHeight=&ScaleUp=false&Quality=High&Method=ResizeFitToAreaArguments&Signature=E8E3A6B898237CDB6C60CB8AC3230661)
Hole size in pipe can be 14mm, 17mm or 19mm
MK2 - Fixed clamp nozzle holder

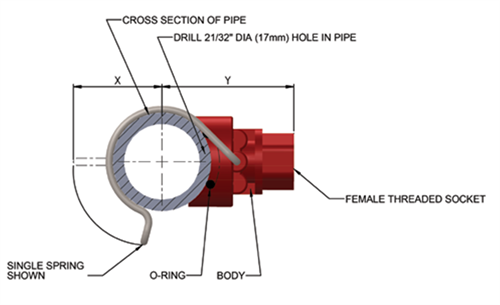

A single or double clamp style holder with a fixed thread to accommodate 1/8” too ½” male threaded nozzles.
![MK2 diagram MK nozzle holder](/images/default-source/drawings/Uni-spray/mk2-diagram.png?sfvrsn=e06ffd92_0&MaxWidth=500&MaxHeight=&ScaleUp=false&Quality=High&Method=ResizeFitToAreaArguments&Signature=D1A2192AF0A883ADEDB87965F023DDD9)
Hole size in pipe can be 14mm, 17mm or 19mm.
MK3 – Threaded adjustable nozzle holder

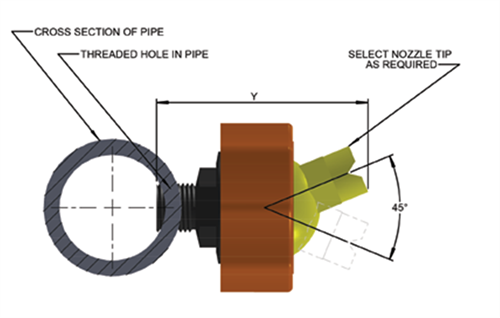

A threaded nozzle holder with an adjustable ball socket can either take a moulded ball socket Uni-Spray nozzle or can have a threaded ball socket that can accommodate 1/8” to ½” male threaded nozzles.
![MK3 diagram MK 3 nozzle holder](/images/default-source/drawings/Uni-spray/mk3-diagram.png?sfvrsn=d26ffd92_0&MaxWidth=500&MaxHeight=&ScaleUp=false&Quality=High&Method=ResizeFitToAreaArguments&Signature=3B99CF4ACC139FAB0643C14158BCC6FD)
NEW! MK4 - Threaded nozzle base for "Quik-Change" Tips
![Mark 4 Mark4 Nozzle Base for Quik-Change nozzles](/images/default-source/e-mail-images/mark-4-no-header.jpg?sfvrsn=b4f0f092_0)

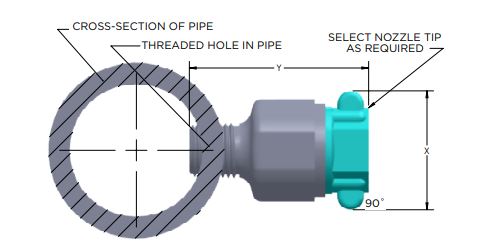

The Mark 4 “Quik-Change” Nozzle Base from Uni-spray was designed for printed circuit board (PCB) washing but lends itself to any wash type usage where adjustment/orientation other than straight ahead is not required and space may be limited.
The Mark 4 is directly threaded into pipework and with a bayonet quarter turn connection the system can accept any of Uni-spray’s “Quik-Change” nozzle tips. The tips are available in a huge range of spray angles and in flat spray, straight jet, full cone and hollow cone spray patterns.
Made from custom-blended polypropylene or Kynar by special order, the Mark 4 is impervious to most chemicals and has a low-profile design.
