Fire protection nozzle selection table

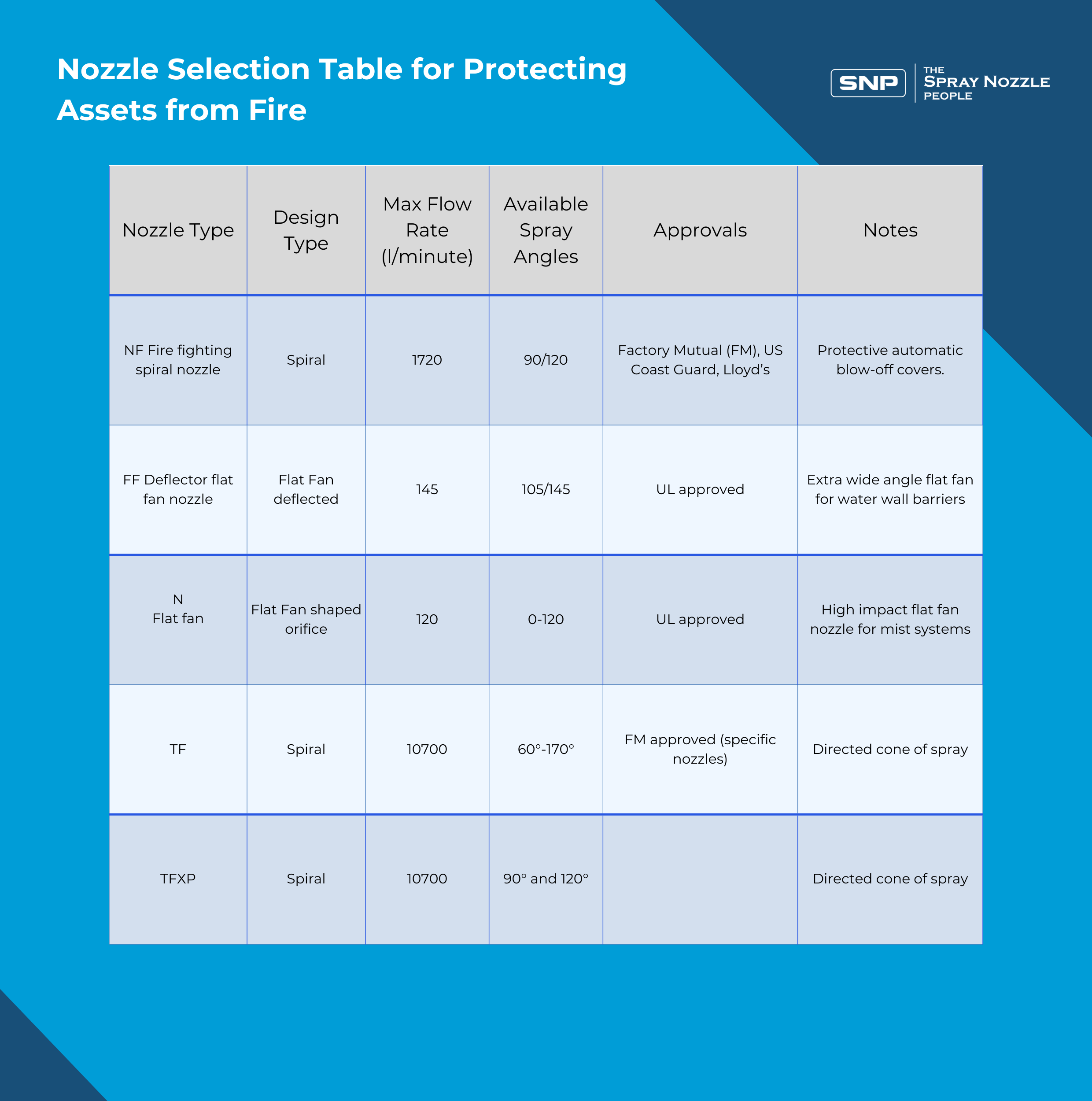

The table below summarses much of the information in the fire protection nozzle section of the SNP   website.  It is intended to be a handy reference guide to aid nozzle selection.  Full data on each of the nozzles listed can be accessed by clicking on the boxes in the left hand column of the table below.  The data sheets will open in a separate tab to allow easy comparisons between multiple product sheets.





Nozzle Type





Design Type





Max Flow Rate (l/minute)





Available Spray Angles





Approvals





Notes





Fire fighting spiral nozzle





Spiral





1720





90/120





Factory Mutual



US Coast Guard



Lloyd’s





Protective automatic blow-off covers.









Deflector flat fan nozzle





Flat Fan deflected





145





105/145







Flat fan nozzle box (NF)





Flat Fan shaped orifice





120





0-120







Fire Protection Engineering Considerations:

Fire Protection Nozzle Designs:
