Foam control nozzle selection table

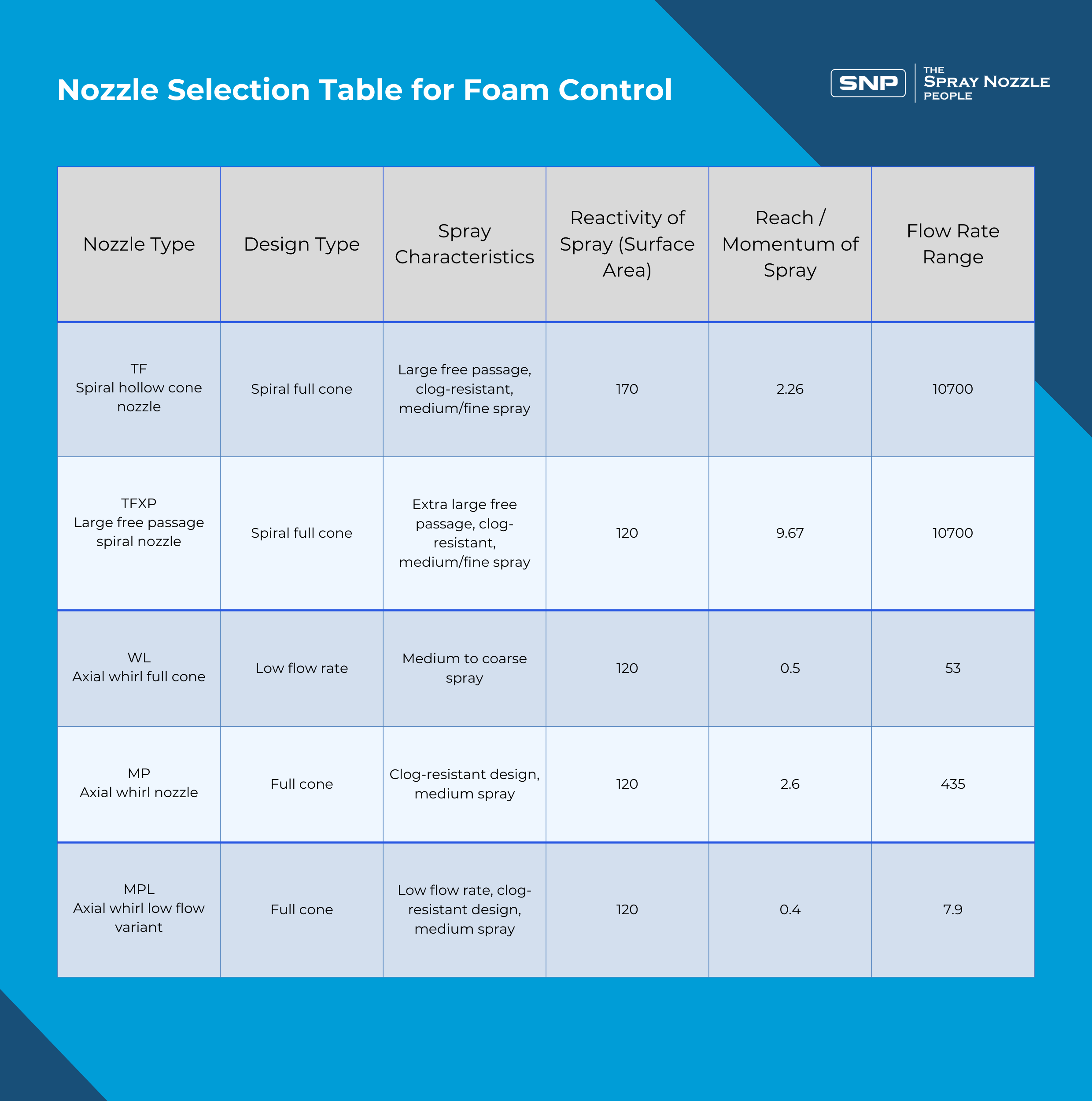

The table below summarises much of the information in the foam control nozzle section of the SNP  website.  It is intended to be a handy reference guide to aid nozzle selection.  Full data on each of the nozzles listed can be accessed by clicking on the boxes in the left hand column of the table below. The data sheets will open in a separate tab to allow easy comparisons between multiple product sheets.





Nozzle Type





Nozzle Design





Features





Max Spray Angle





Min Throughput





Max Throughput





Spiral Hollow Cone Nozzles





Spiral



Full cone





Large free- passage



Clog-resistant



Medium/fine spray





170





2.26





10700





Large free passage spiral nozzle





Spiral



Full cone





Extra large free- passage



Clog resistant



Medium/fine spray







120





9.67





10700









Axial whirl full cone





Low flow rate



Medium to coarse spray





120





0.5





53









Axial whirl



Full cone





Clog resistant design



Medium spray







120





2.6





435









Axial whirl



Full cone



Low flow rate variant





Clog-resistant design



Medium spray







120





0.4





7.9
