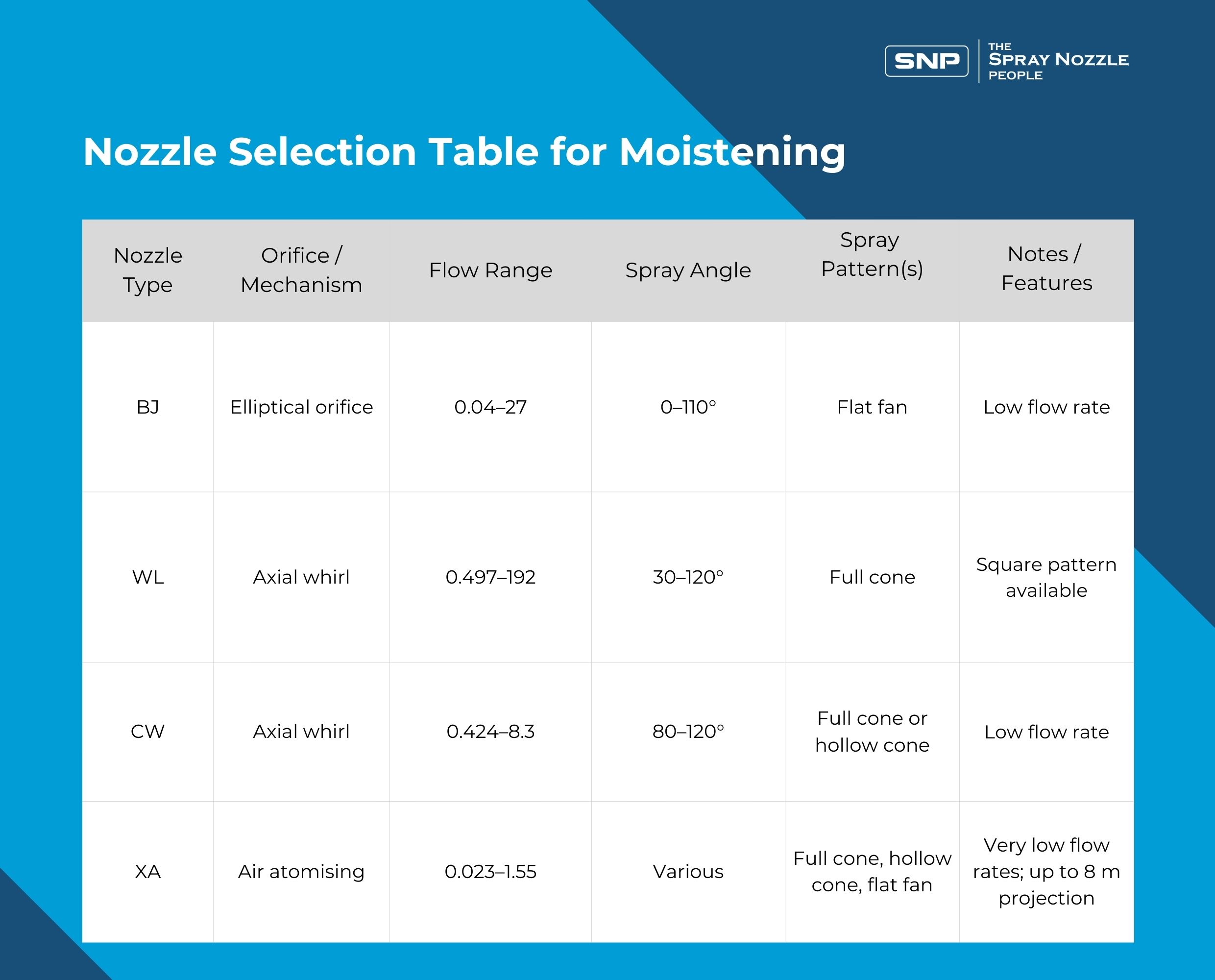

Moistening nozzle selection table

The table below summarises much of the information in the moistening nozzle section of the SNP website.  It is intended to be a  handy reference guide to aid nozzle selection.  Full data on each of the nozzles listed can be accessed by clicking on the boxes in the left hand column of the table below.  The data sheets will open in a separate tab to allow easy comparisons between multiple product sheets.



Nozzle Type



Nozzle Design



Flow Rates (litres / minute)



Available Spray Angles



Spray Pattern



Notes



Low flow rate flat fan nozzle



Elliptical orifice



0.04-27



0-110



Flat fan



Low flow rate





Axial whirl



0.497-192



30-120



Full cone



Square pattern available





Axial whirl



0.424-8.3



80-120



Full cone or hollow cone





xa air atomising nozzles



Air atomising



0.0230-1.55



Various



Full cone



Hollow cone



Flat fan



Very low flow rates



Up to 8 metres projection



Different spray patterns available



Moistening Engineering Considerations

Moistening Nozzle Designs
