Cleaning nozzle selection table

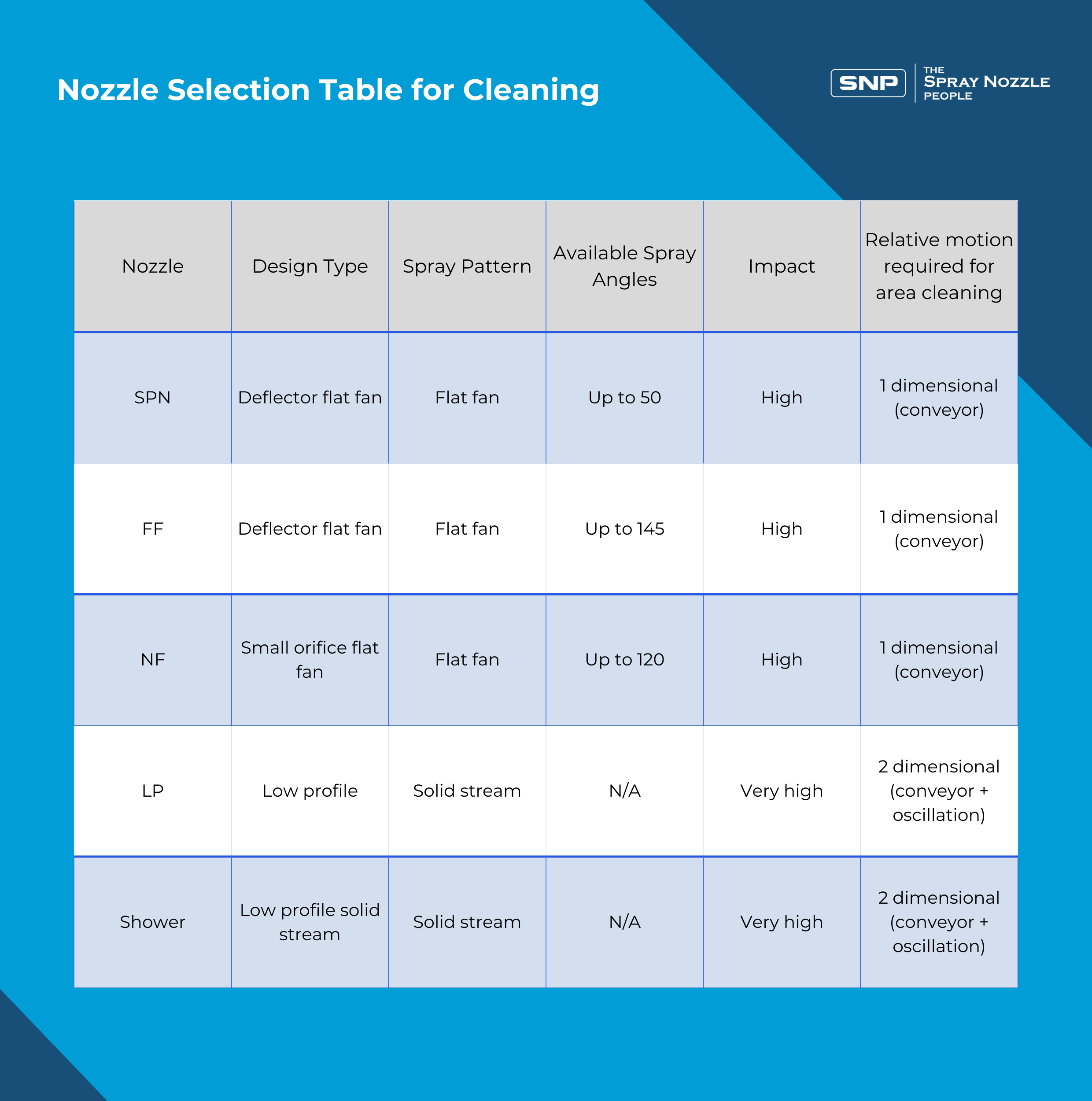

The table below summarises much of the information in the gas cleaning nozzle section of the SNP website.  It is intended to be a handy reference guide to aid nozzle selection.  Full data on each of the nozzles listed can be accessed by clicking on the boxes in the left hand column of the table below.  The data sheets will open in a separate tab to allow easy comparisons between multiple product sheets.





Nozzle Type





Design Type





Spray Pattern





Available Spray Angles





Impact





Relative motion required for area cleaning.





High Impact Deflector Flat Fan Nozzle (SPN)





Deflector flat fan





Flat fan





Up to 50





High





1 dimensional (conveyor)





Deflector flat fan nozzle





Deflector flat fan





Flat fan





Up to 145





High





1 dimensional (conveyor)





Flat fan nozzle box (NF)





Small orifice flat fan





Flat fan





Up to



120





High





1 dimensional (conveyor)





Low profile flat fan nozzle





Low profile





Solid stream





N/A





Very high





2 dimensional (conveyor + oscillation)





Shower





Low profile solid stream





Solid stream





N/A





Very high





2 dimensional (conveyor + oscillation)
