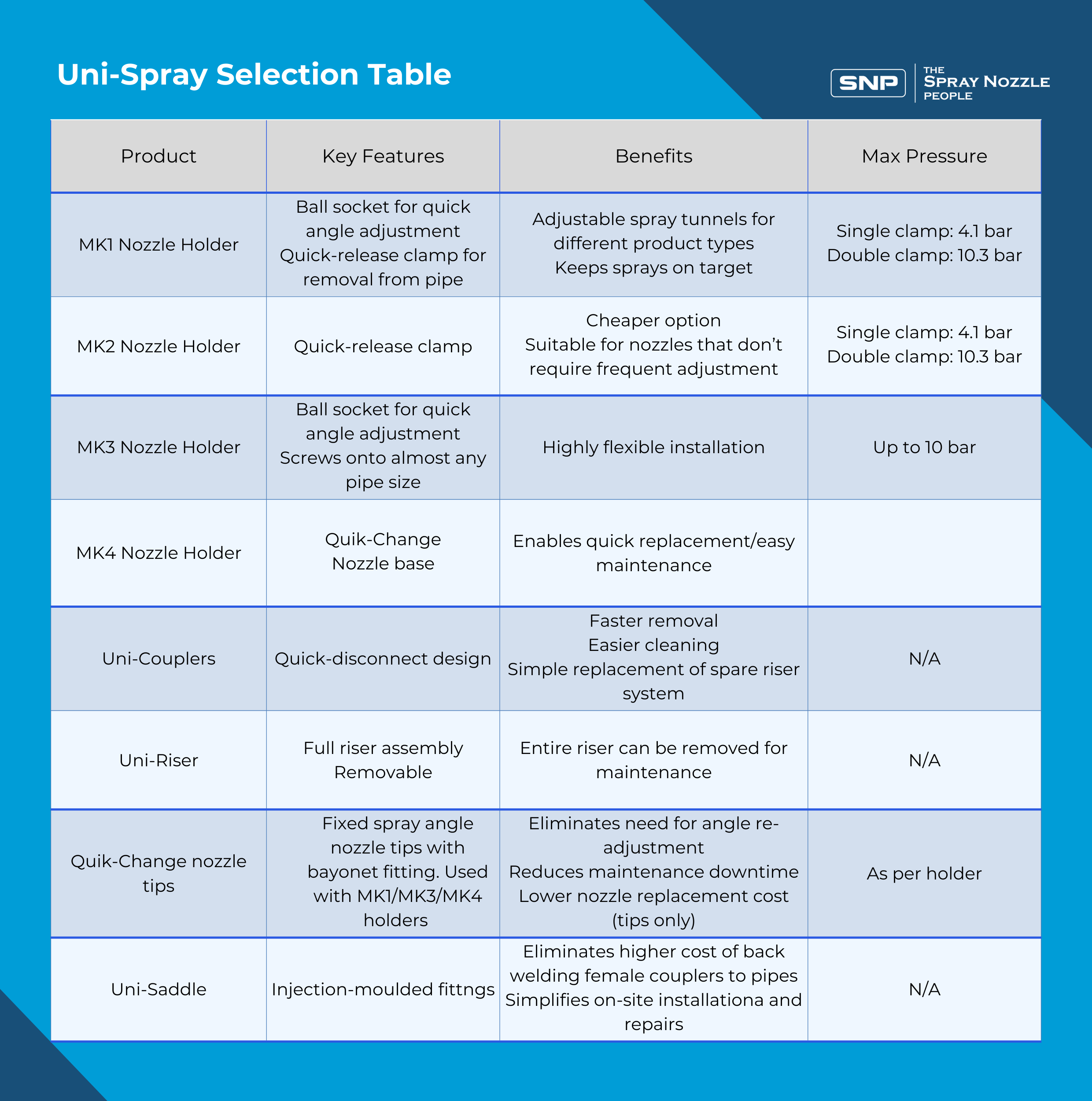

Pre-treatment quick change system selection

The selection table below details all the elements of the Uni-Spray quick change system.  Each element 'product box' in the left hand column links through to further technical data on the product#.  This will open in a separate tab to allow for the easy comparison of products.

Element

Time Benefits

Operational Benefits

Notes

Uni-spray mark 1 nozzle holder

Ball socket allows for quick angle adjustments

Quick release clamp allows holder to be removed from pipe

Allows for spray tunnels to be adjusted for different product types to keep the sprays on target.

Max Pressures

Single Clamp 4.1 bar

Double Clamp 10.3 Bar

MK2

Quick release clamp allows holder to be removed from pipe

Cheaper and suitable for nozzles that do not need adjusting frequently.

Max pressure

Single Clamp 4.1 bar

Double Clamp 10.3 Bar

MK3

Ball socket allows for quick angle adjustments

Can screw to almost any pipe size

Max pressure

Up to 10 Bar

Q Tip

Eliminates the need for angle re-adjustment

Greatly reduces downtime for maintenance.
Reduces nozzle replacement cost as just the tips need replacing.

As per holder

Colour coded parts

Allows for easy identification of parts

Eliminates changeover errors



Connect

Allows for quick disconnection of parts.

Easier to clean when removed.

Easy to replace spare riser system




Complete riser

Allows for entire riser to be removed for maintenance
