Rotary spray balls

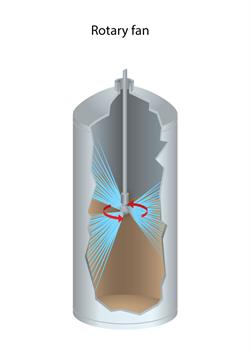

Rotary Spray BallRotary spray balls produce three fan sprays.  These fan sprays rotate and so sweep around the tank walls ensuring a complete clean.  The rotary motion is powered by the fluid itself and so no external power source is required.

These versatile cleaners are far more water-efficient than static nozzles/spray balls as the momentum of the spray is concentrated in three fan sprays rather than distributed into scores of micro jets (as with spray balls) or into a very wide angle spray pattern (as with spiral nozzle tank cleaners).

Limitations

Rotary spray balls are a cost effective way of cleaning medium sized tanks but they will struggle to effectively clean tanks with a diameter of much more than 5 metres.

Whilst the impact of the cleaning spray is greater than static nozzles and spray balls, it will still take time to break down tough residues.  This means that for very sticky or burnt-on contaminants rotary spray balls may not be the most water efficient cleaning system and instead rotary jet cleaners should be considered.

Uses

Rotary spray balls are amongst the most versatile of tank cleaning systems.

Their small size and slim profile means they can be inserted through an opening as small at 17mm meaning they can be used almost any tank.

For smaller tanks they will almost always improve the water efficiency of the clean over static nozzles.

For larger tanks they represent a cheap, low pressure way of cleaning or rinsing medium to tough residues although they may need to be run for considerable lengths of time to clean some tanks.

HydroWhirl Poseidon Rotary Fan PTFE Tank Cleaner Hydro Whirl Tank Cleaning Nozzle rsb  HWS user & installation manual

Solutions for cleaning small tanks and processing equipment

The HydroWhirl® Mini (HWM) rotary tank cleaning nozzle is ideal for cleaning compact areas inside equipment or small tanks up to 3 ft in diameter.

The HWM comes in stainless steel, the HydroWhirl® Mini SS,  with threaded and clip-on versions available, and the HydroWhirl® Mini PVDF.

The HWM is designed for applications such as cleaning food processing and dispensing equipment and for pipe and bottle cleaning. The PVDF version allows for cleaning of processing equipment which may have harsh chemical residues.

To download the HWM SS datasheet, click HYDROWHIRL MINI SS:
To download the HWM PVDF datasheet, click HYDROWHIRL MINI PVDF
